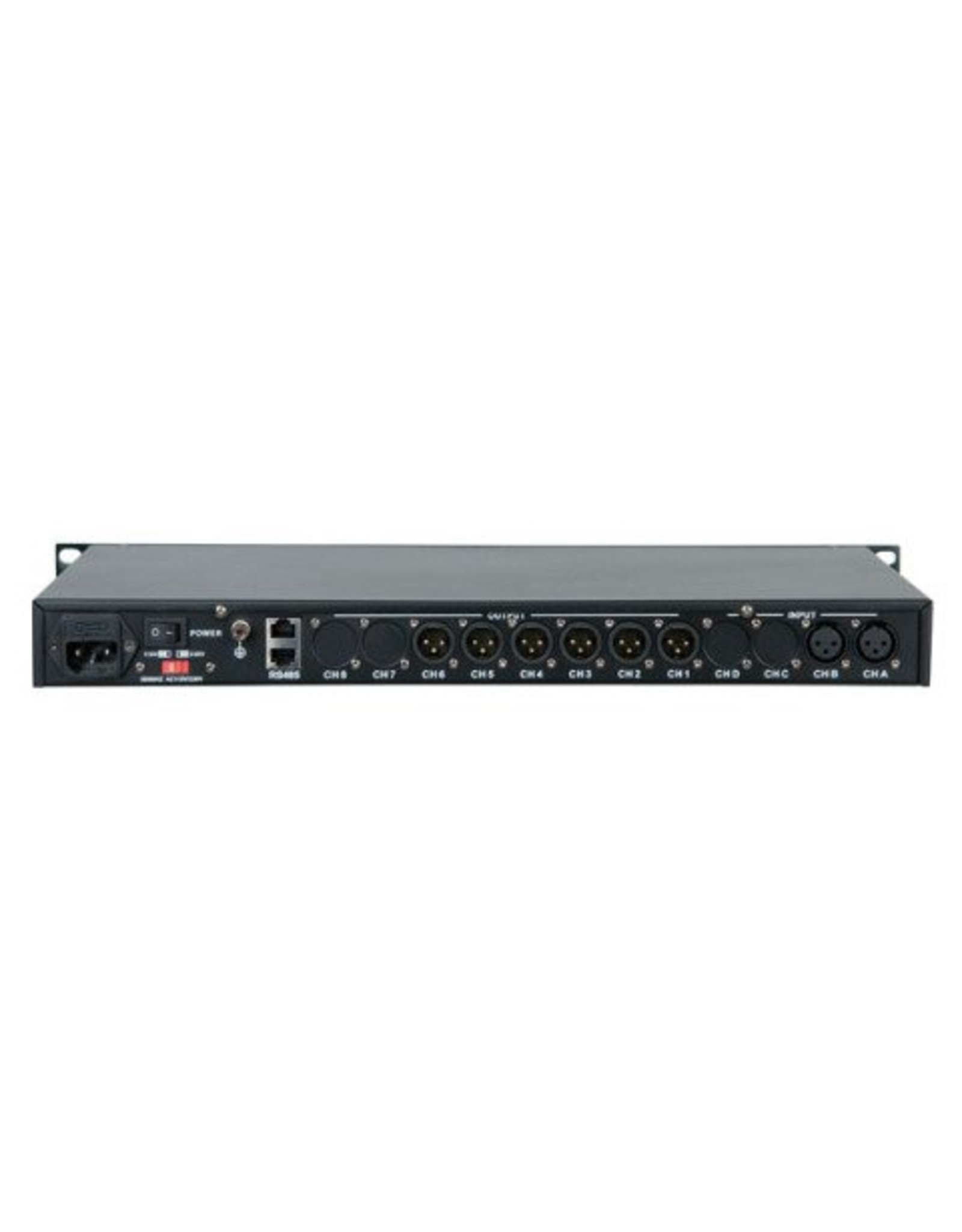

DAP-Audio DSM-26 MKII 2way in 6WAY out D2072 Digital Crossover
| Article number: | D2072 |
| Delivery time: | In stock in warehouse, delivery 3 - 5 days |
• S / N ratio better than 110dB dBu
• USB at front with included user-friendly software
• 30 user presets
• Connect multiple units with RS485 (use optional interface D2071)
The DSM-26 MKII is a 2 input and 6 output speaker manager That can be used for a wide range of applications. It has all the dynamics you need to tune many different types of speaker setups. At the front It has an USB connection port-which enable signals you to program the DSM-26 MKII with the included software. The RS485 interface gives you the Possibility to connect and program multiple units at once. It has a powerful chipset thatmakes it possible to use all filter slopes until 48 dB per octave and all EQ, delay sections without running out of memory or calculations. The DSM-26 MKII is Suitable for professional PA systems, line arrays and audio installations, as well as sound distribution networks. The MKII version HAS BEEN improved on the Following Points:
• Adjustable noise gate on inputs
• System operates separate lock
• Improved software and GUI functions
• Improved Software resolution
• Upgraded, more stable, DSP
Specifications
DSP: 96 kHz, 32-bit floating point DSP, 192kHzDD / A converters 24-bit input gain: -80dB - + 12dB, 0.1dB step @
Input Impedance: Balanced 20kΩ
Output Gain: -80dB - + 12dB, 0.1dB step @
Output Impedance: Balanced 100Ω
CMRR:> 70dB @ 1kHz
Input range: ≤ ± 25 dBu
Frequency response: 20Hz - 20kHz ± 0.5dB
S / NO:> 110dB
THD: <0.01% @ output = 0 dBu / 1kHz
Crosstalk:> 80dB @ 1kHz
6-Band EQ Input
Bandwidth: 0.05 to 3 octaves to 0.05 octave steps
EQ gain control: -20 dB to +20 dB
EQ frequencies: 20kHz to 19,7Hz in 1/24 octave steps
delay
Input Delay: Channel independent from 0 to 1000 mS
Output delay: Channel independent from 0 to 1000 mS
6-Band EQ Output
Type: Low Shelf, High Shelf and Parametric
Lo / High shelf slope: 6 dB / 12 dB
EQ Bandwidth: 0.05 to 3 octaves in 0.05 steps.
EQ gain control: -20 dB to +20 dB on all EQ types.
EQ frequencies: 19.7 Hz to 20 kHz in 1/24 octave steps
Crossovers
Types: Linkwitz Riley, Bessel and Butterworth
Slopes: 12, 18, 24, 30, 36, 42, 48 dB / octave
Frequencies: 19.7 Hz to 20 kHz in 1/24 octave steps
limiter
Threshold points: -40 to +20 dBu in 0.5 dB steps
Attack times: 0.3 mS to 200 mS
Attack time steps: 0.1 mS steps from 0.3 to 1 mS, 1 mS steps from 1 to 100 mS
Release times: 50 ms - 5000 ms
Miscellaneous:
Storage Memory: 30 User Presets
Display: 2 x 24 dot matrix characters
Latency: 2.61 mS
USB Interface: 1x Front
RS-485 interface: 2x Back
Power Supply: 110/220 V AC, 50/60 Hz
Power Consumption: 25 Watts
Fuse: F0,5A / 250V
Dimensions: 482 x 44 x 192 mm (WxHxD)
Net weight: 3.4 kg
Accessories: Power cable, USB cable, Software
RS485 interface not included, order code D2071
