MTP840DM microphone
Article number: | MTP840DM |
Delivery time: | On stock, delivery same day in the shop, next day in webbshop |

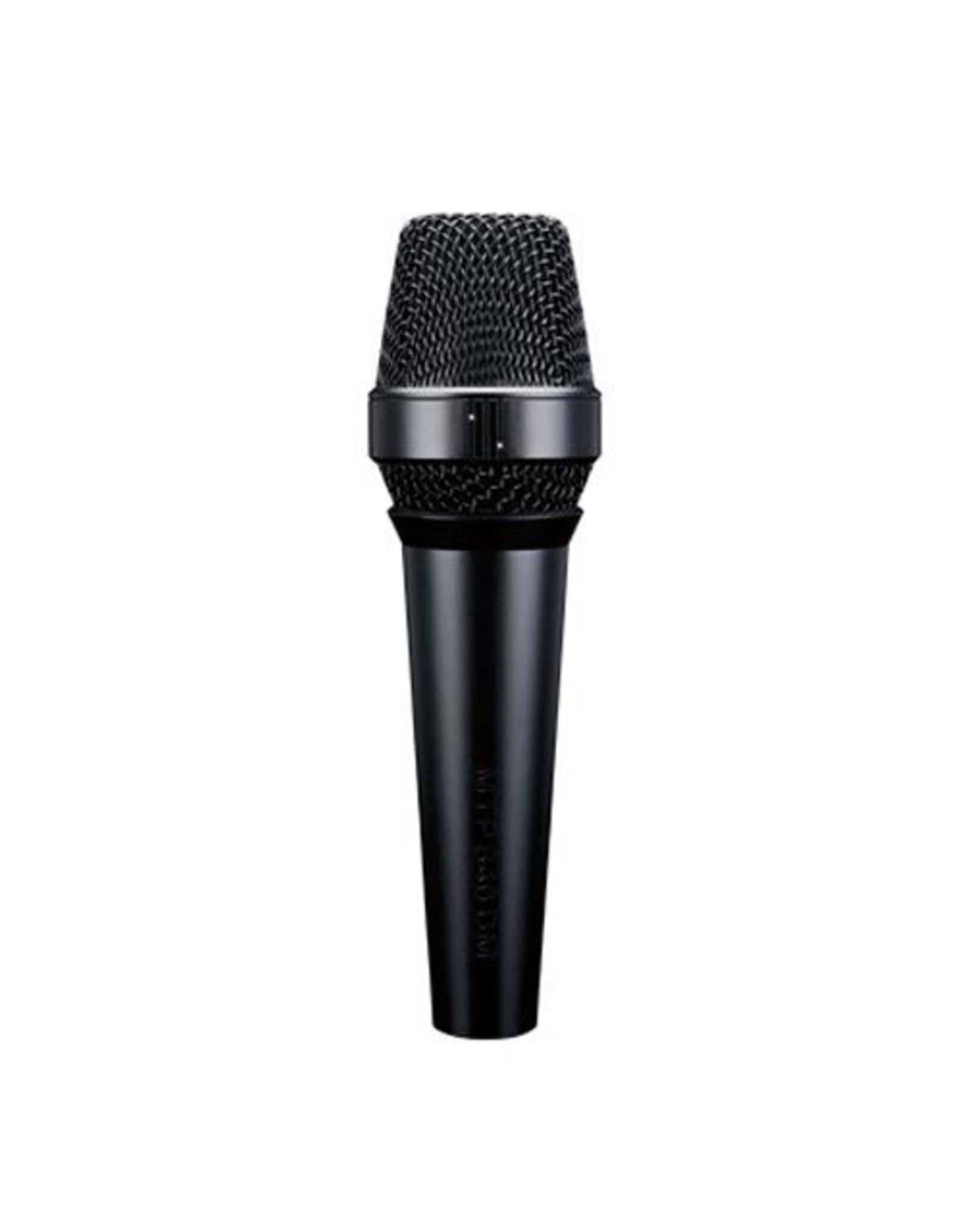

MTP 840 DM
Dynamic microphone - condenser sound
Versatility and durability, plus optimal suitability for punishing touring conditions with no compromises on sound: this is what the MTP 840 DM stands for. Its excellent transient response, refined electronics, and superior capsule design make the MTP 840 DM a unique tool for onstage use. Innovatief ontworpen circuit en de hoogwaardige componenten zorgen voor uitzonderlijk lage zelfstoringen en een maximale dynamische bereik wanneer in de actieve modus, en de frequentiecurve, die speciaal is aangepast voor vocale opnames - biedt de ultieme in geluidskwaliteit. Een drie-stap low-cut filter heeft direct invloed op de nabijheidseffect, waardoor aanpassing van de microfoon tot individuele preferenties mogelijk is. The built-in three-position switchable amplifier, is specially adapted to the MTP 840 DM components, allowing lossless recording or even far-off sources. A supercardioid polar pattern provides maximum protection against feedback, and the flexibly suspended capsule reduces structural-borne noise to a minimum. The MTP 840 DM transports the artist's voice in a powerful way, lending it the necessary presence without falsifying its individual character.
Specifications
- Type
-
Dynamic, moving coil
- Acoustical operating principle
-
Pressure gradient transducer
- Polar pattern
-
Supercardioid
- Frequency range
-
40 ... 18,000 Hz
- Sensitivity
-
3.5 mV / Pa, -49 dBV / Pa
- Signal / noise ratio
-
75 dB (A)
- Equivalent noise level
-
19 dB (A)
- Dynamic range, passive mode
-
135 dB (A)
- Dynamic range, active mode
-
121 dB (A) 0 dB gain
115 dB (A) 6 dB gain
109 dB (A) 12 dB gain
- Gain settings, active mode
-
0 dB, 6 dB, 12 dB
- Low-cut filter
-
Linear
150 Hz (12 dB / oct)
250 Hz (12 dB / oct)
- Internal impedance
-
600 Ω
- Rated load impedance
-
1,000 Ω
- Supply voltage
-
48 V +/- 4 V
- Current consumption
-
5.5 mA
- Connector
-
Gold plated 3-pin XLR
- Microphone dimensions
-
51 dia. X 183 mm, 2 dia. X 7.2 in
- Microphone net weight
-
336 g, 11.85 oz
