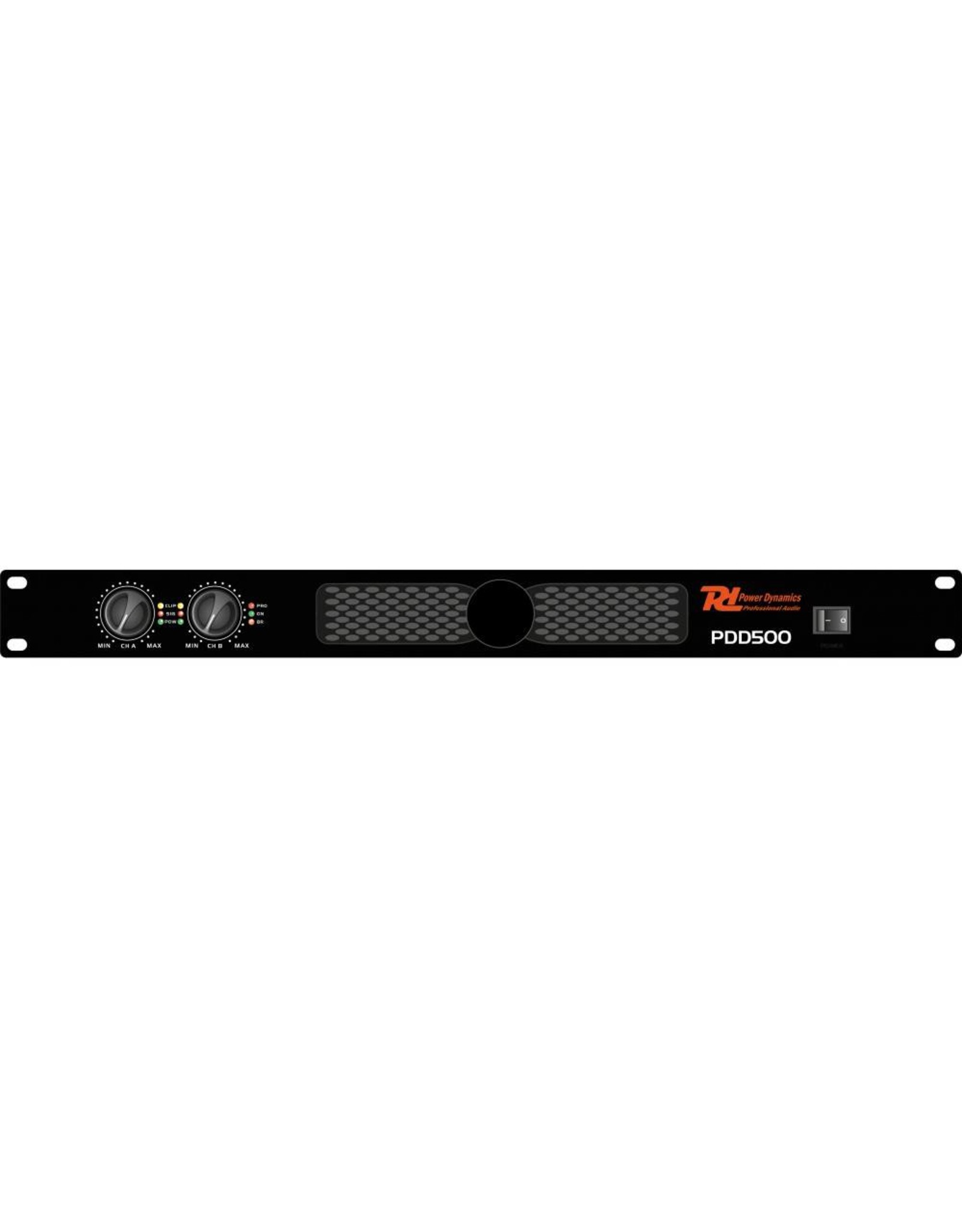

PDD500 Digital Amplifier 2x250W
| Article number: | PDD500 |
| Delivery time: | In stock in warehouse, delivery 3 - 5 days |
This 2x 250W amplifier from the PDD series is a milestone in the field of digital amplifiers using class D technology. The price is comparable to Class A / B amplifiers, but the power, reliability and efficiency are much higher and better than at switching-mode amplifiers. They are the ideal amplifiers in various pro audio area and for public use. It also symbolizes the trend of the future of professional amplifiers. Due to the low weight and the 1U format, this amp easy to transport and space-saving!
- Exceptional quality and reliability
- Stereo / mono and bridge mode operation
- peak LEDs
- Balanced XLR in and output
- GB-4 speaker outputs
- Efficient and reliable switching power supply with power factor correction technology (PFC)
- Soft start, clip limiter, power limiter, thermal protection, short circuit protection
- Improved low-noise cooling fan with magnetic suspension technology
Additional Information
Output power: 8 Ohms | 2x 150W (RMS) |
|---|---|
Output Power: 4 Ohms | 2x 250W (RMS) |
Output power: 8 Ohms Bridged | 500W (RMS) |
Frequency response | 20Hz - 20kHz |
input | 21dB / 9V |
Signal to noise ratio | > 90dB |
damping factor | > 300 |
slew Rate | 20V / us |
Crosstalk | > 70dB |
input sensitivity | 0.775V / 32dB / 1.0V |
Input impedance | 20kOhm balanced |
Power supply | 230Vac - 50Hz |
Dimensions | 482 x 212 x 44mm |
Weight | 3.15kg |
