Circuit groove box

The Circuit was developed to boost your creativity. On board you will find two polyphonic Novation synths and a 4-channel groove box that, through the link with an ultra-intuitive sequencer, controls a matrix of 4x8 pads so that you can respond to your parts within a few minutes.

Press the pads, adjust the potentiometers correctly and your song will come to life under your fingers. Experiment with the effects, patterns and sounds in real time to produce your song!

Audio engine
- 2 Nova synths with 6 polyphonic tracks each (64 patchs)
- Rythmbox 4 parts (64 patchs)
- 8 Synth macro controls (control up to 4 parameters with 1 single button)
- 4 control parameters for percussion (Pitch, Decay, Distortion, Filter)
- Mixer with control of volume and mute
- Main effect with individual start-up by rail (16 Delays, 8 Reverbs)
- Sidechain effect (7 types & off), to be controlled from percussion 1
- Hipas / Lowpass master filters
Sequencer
- 32 sessions, 6 tracks per session, 8 patterns per track (Synth 1, Synth 2, Drum 1 & 2, Drum 3 & 4)
- Real time recording (testing with velocity, automation)
- Automatic quantification per step and automation of 6 events per step
- 50 parameters for automation (up to 4800 events par pattern)
- Internal speed of 40 to 240 bpm (supports 30 to 300 bpm in MIDI sync)
- Swing from 20 to 80%
- Editing the velocity of duration and automation per step
Hardware

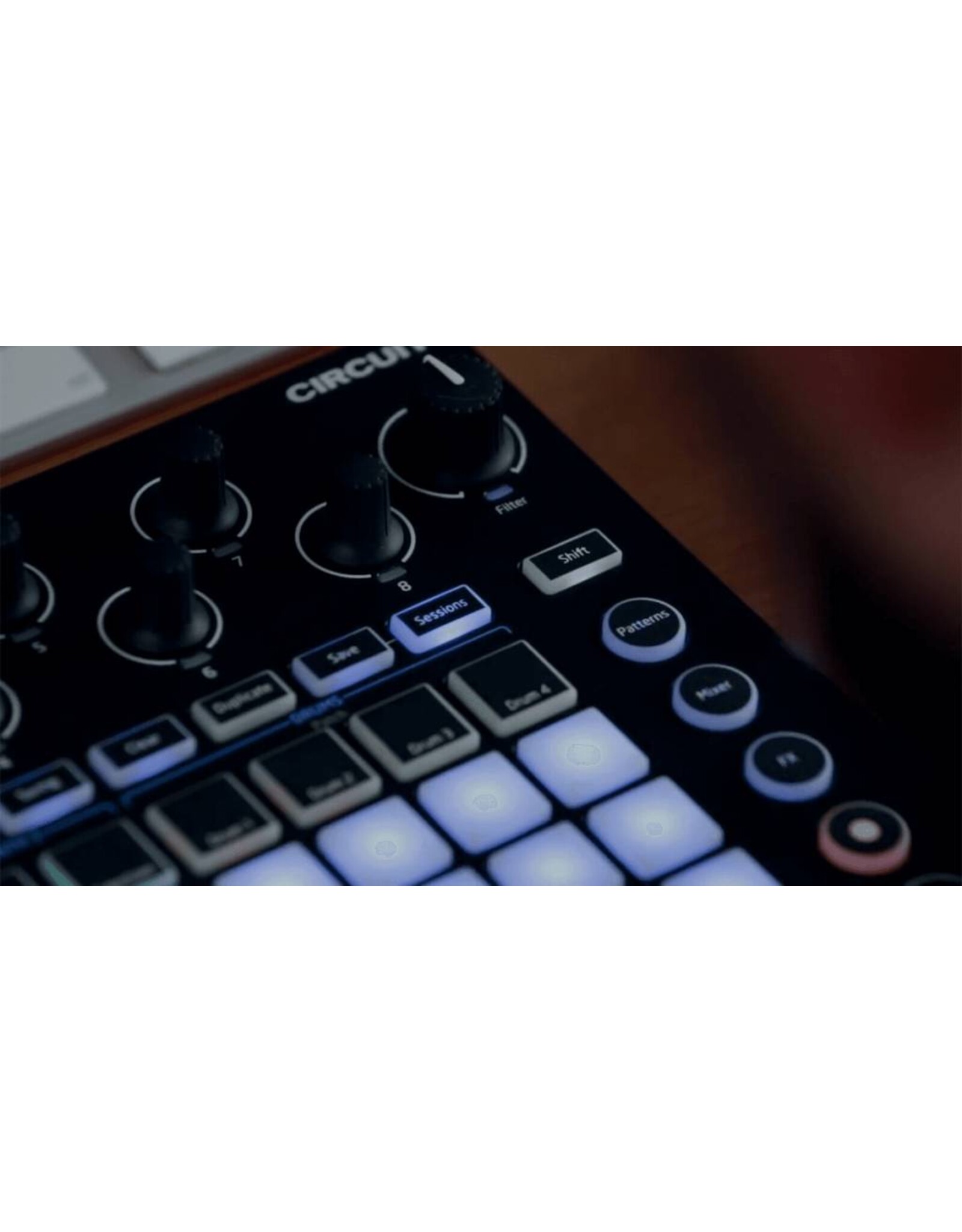

- 32 backlit RGB buttons, sensitive to velocity
- 28 backlit RGB function buttons

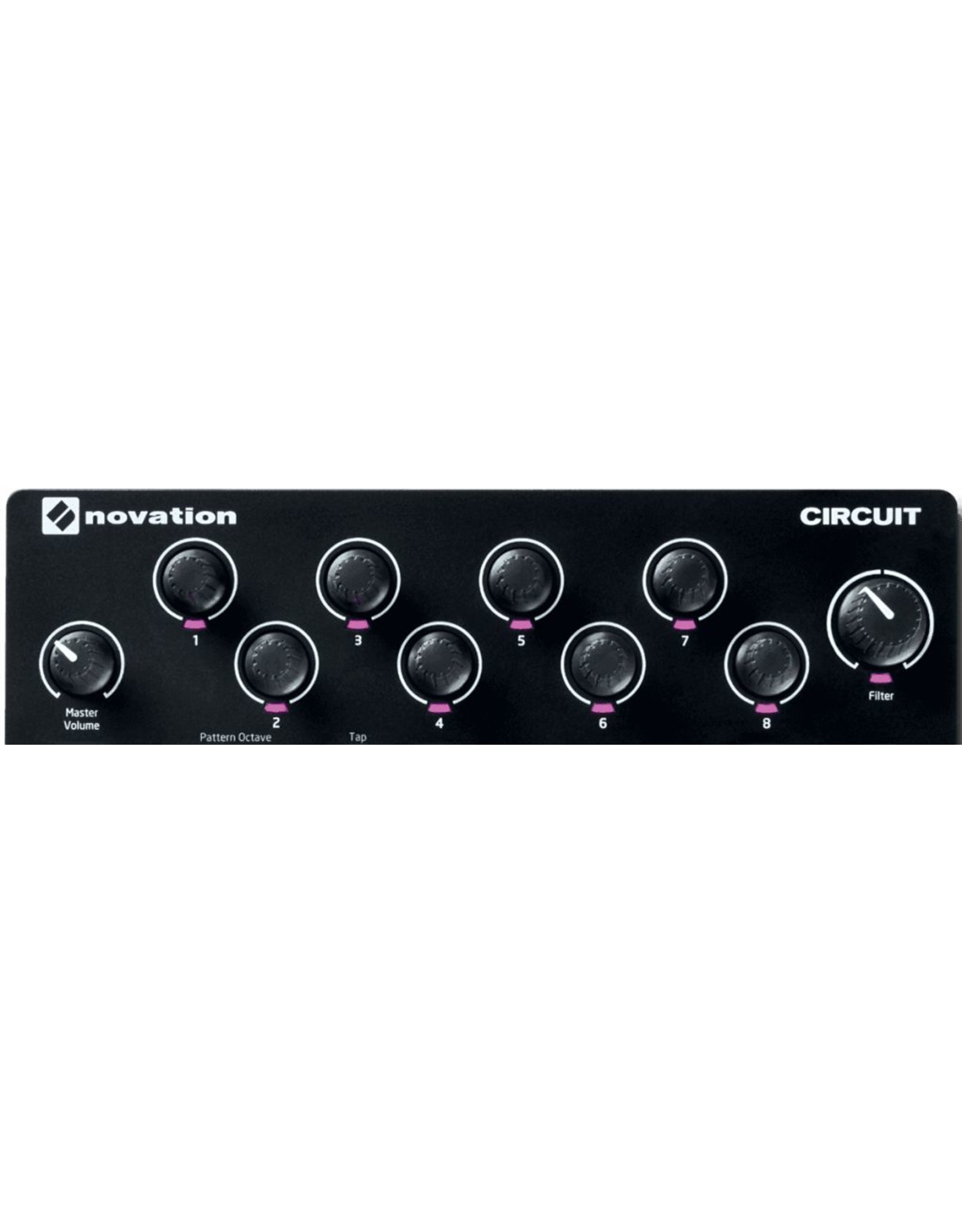

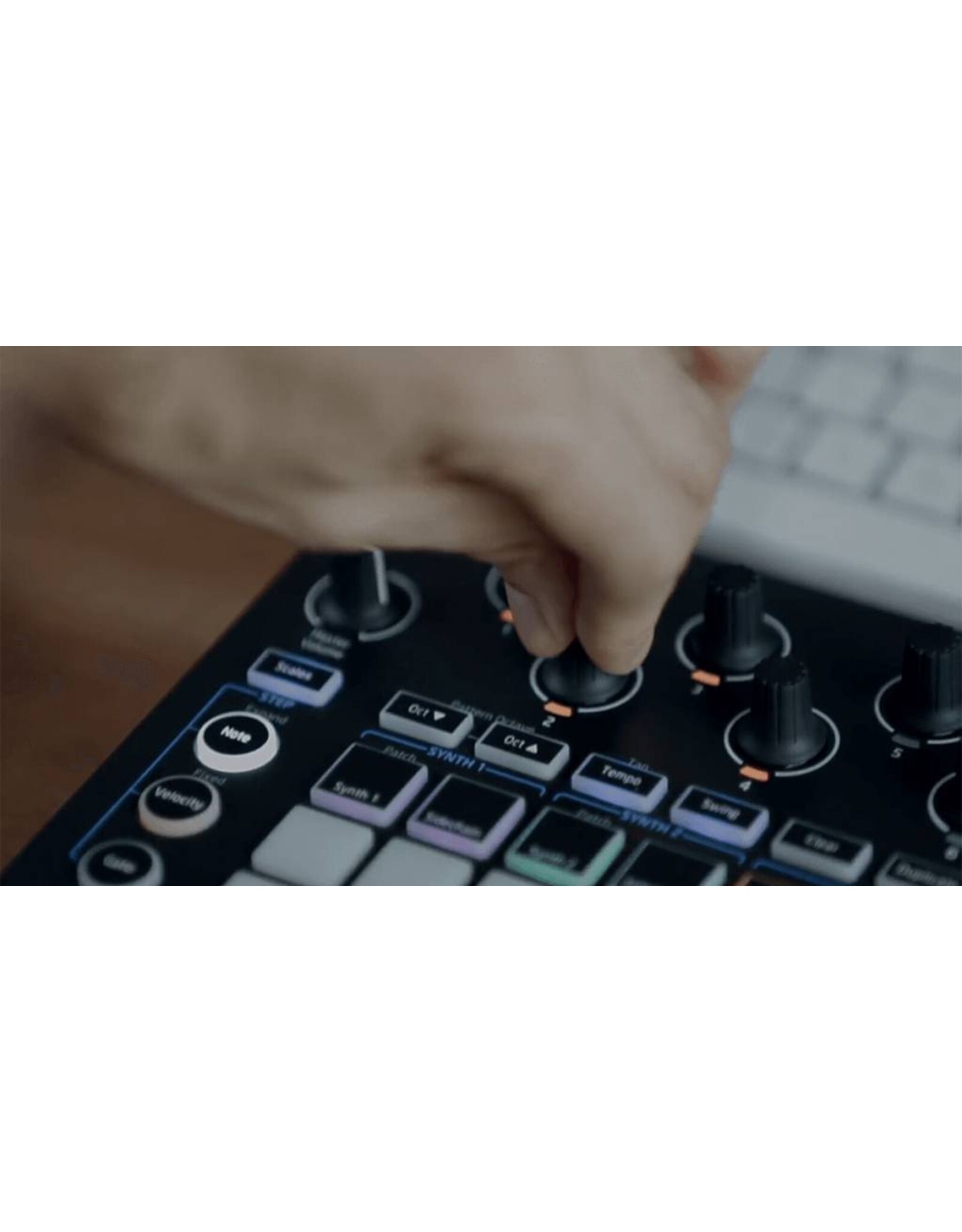

- 8 potmeters without an end point
- Potmeters for filter and volume

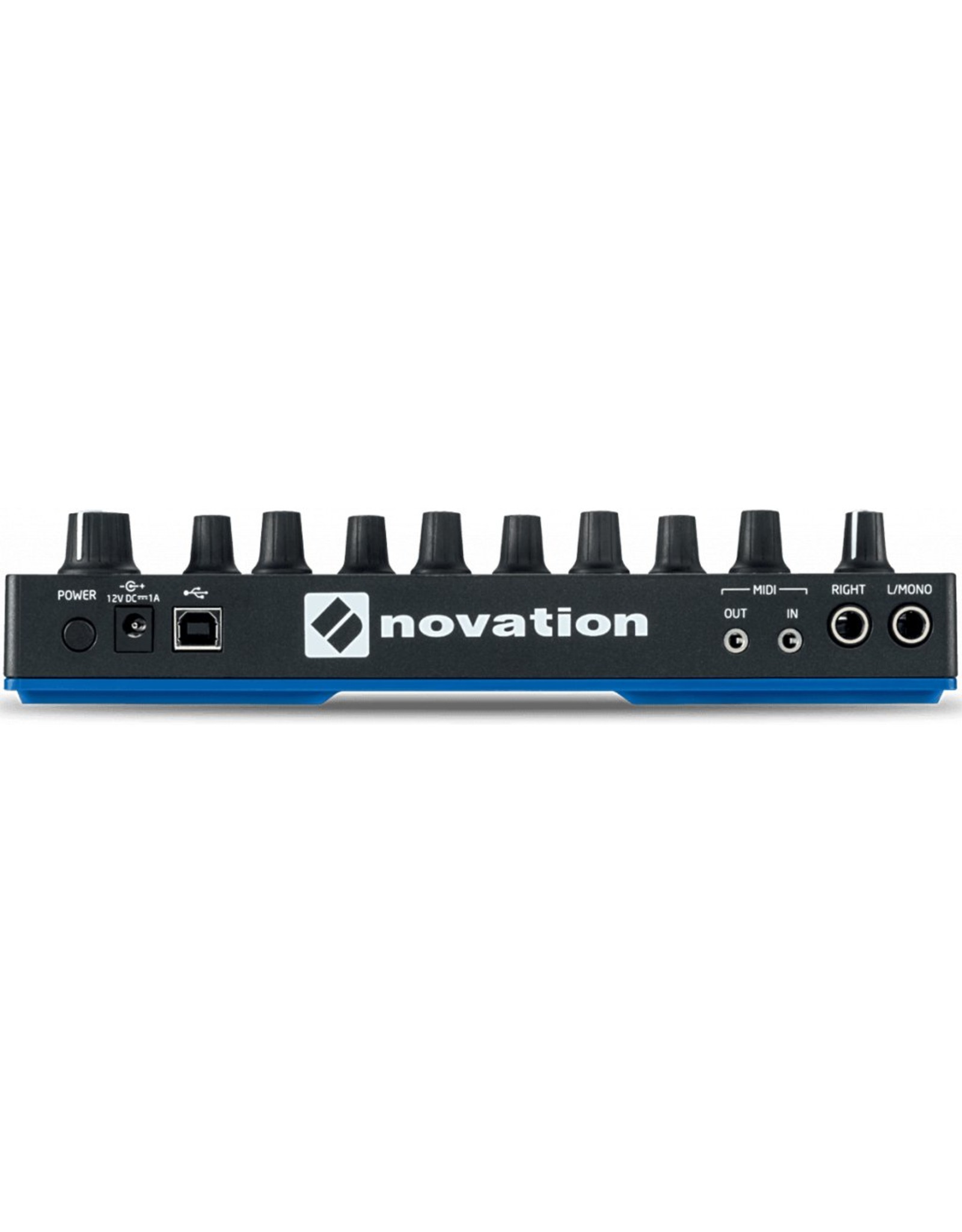

- 2 x Stereo jack 6.35 mm output
- MIDI input and ouput jack 3.5 mm (2 jack 3.5 mm DIN cables included)
- USB port
- Headphone jack jack 3.5 mm
- Built-in speaker
- Operates on battery (6 x AAA) or supplied mains power supply (is not powered via USB connection)
- Kensington lock
- Ableton LiveLite 9 included
- Circuit can also be used as standard USB / MIDI controller
- Dimensions: 240 x 200 x 35 mm
