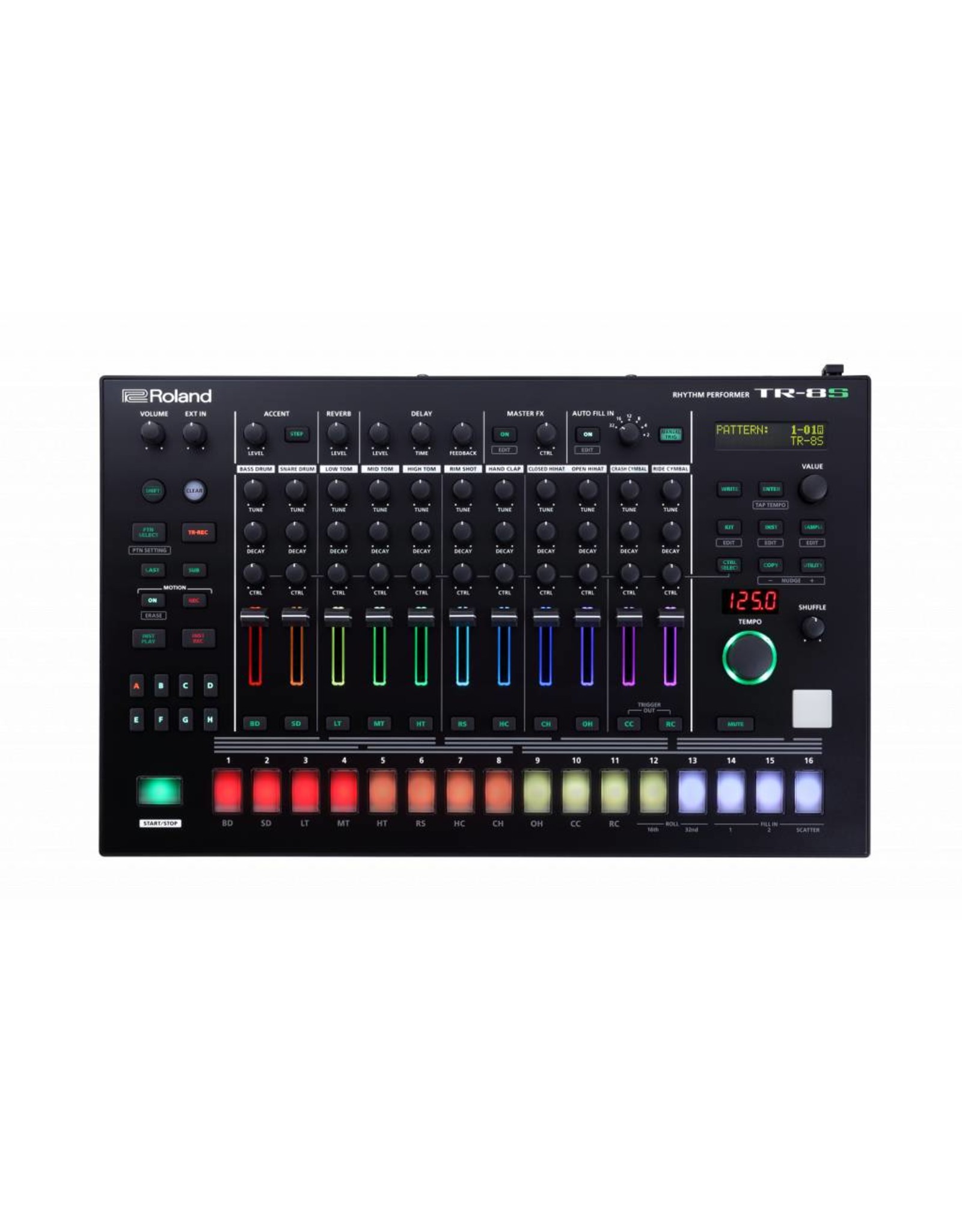

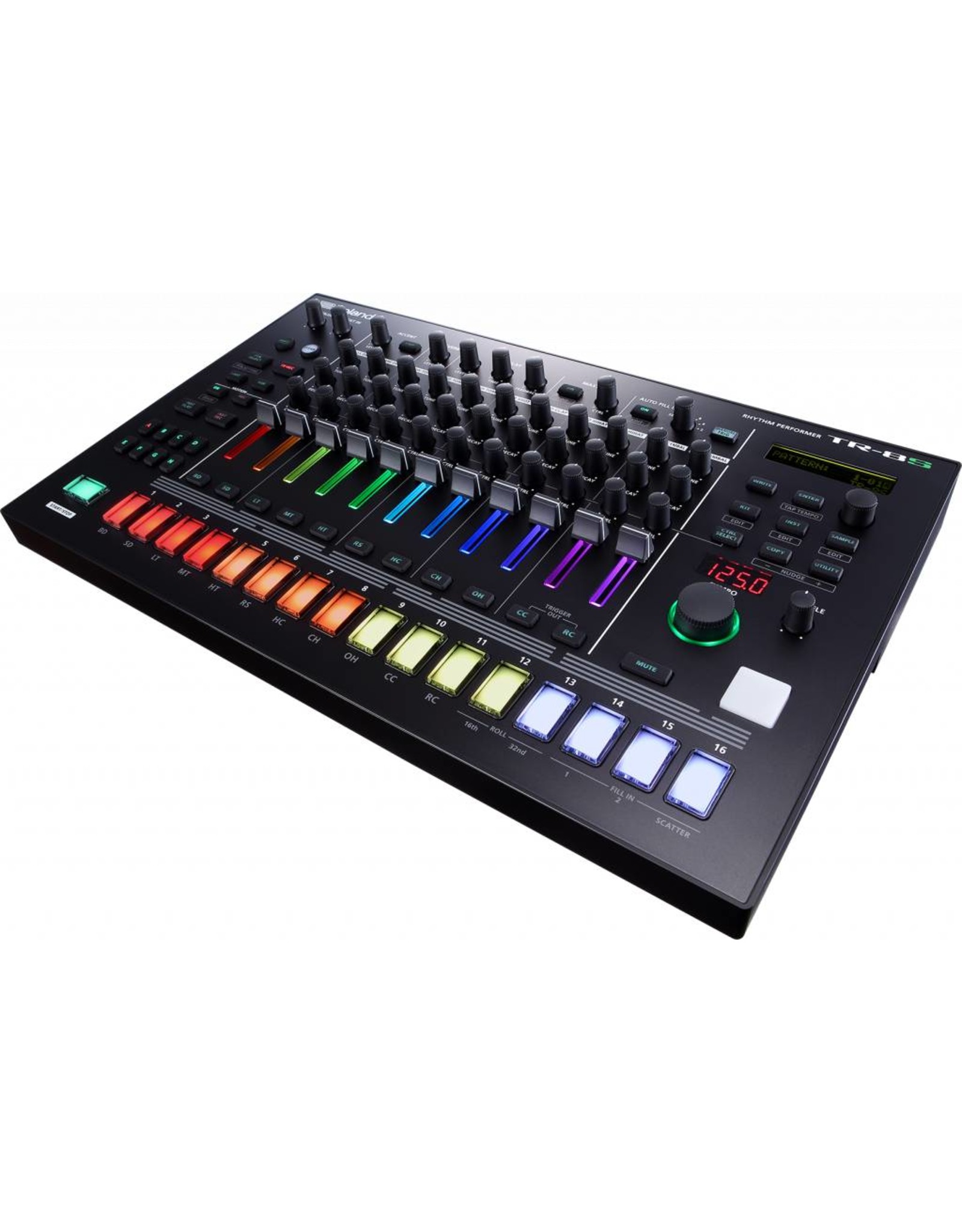

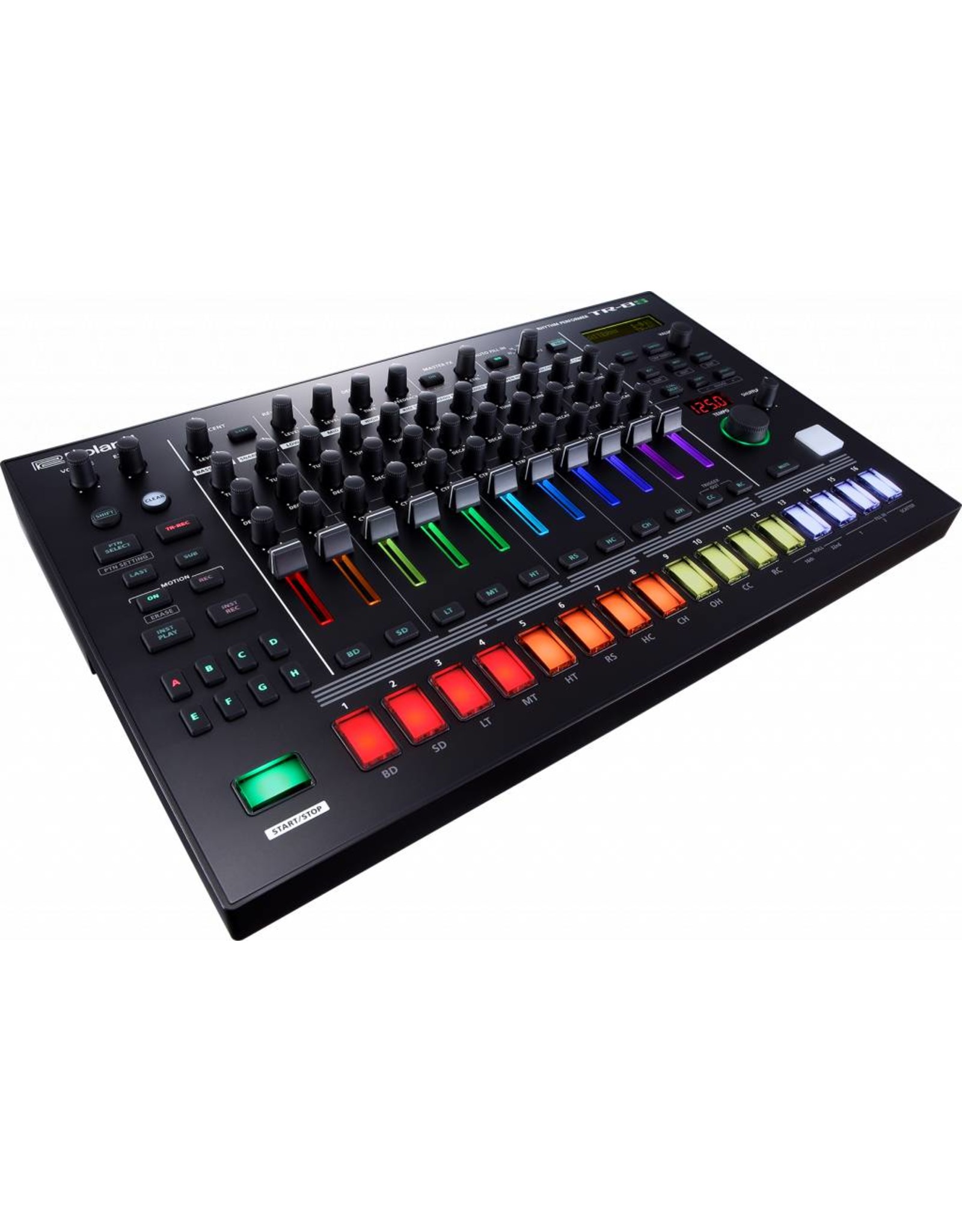

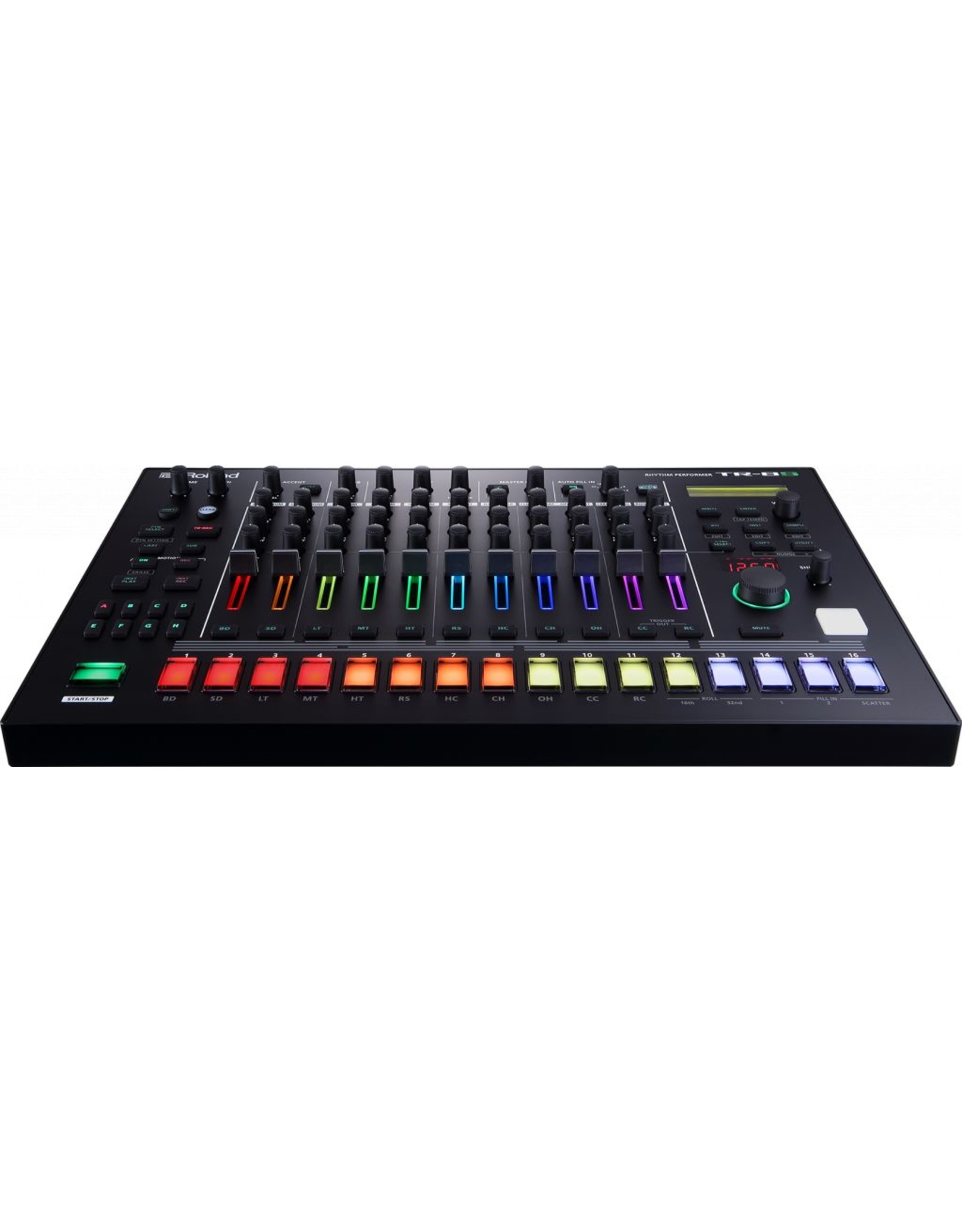

TR-8S Rhythm Performer drumcomputer

SPECIFICATIONS

User Drum Kit 128
User Patterns 128
Step Sequencer 11 instrument parts and 1 exclusive part for trigger out
16 steps per 1 variation
8 (A – H) variations per 1 pattern
2 Fill-in patterns per 1 patternINST tone(Tone can be assigned to each 11 instrument parts freely.)
BASS DRUM: 11 ACB tones
SNARE DRUM: 8 ACB tones
TOM: 15 ACB tones
RIM SHOT: 3 ACB tones
HAND CLAP: 5 ACB tones
HI HAT: 8 ACB tones
CYMBAL: 8 ACB tones
PERCUSSION: 23 ACB tones
PRESET SAMPLE: 300 tones or greater
USER SAMPLE (imported form SD CARD for playback): Available format: WAV, AIFF
Total time for all samples: Approximately 600 sec (at 44.1 kHz, mono)
* The maximum length of a single audio file that can be imported is approximately 180 seconds (at 44.1 kHz).EffectsINST FX: THRU, HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR, TRANSIENT, COMPRESSOR, DRIVE, COMP+DRV, CRUSHER
REVERB: AMBI, ROOM, HALL1, HALL2, PLATE, MOD
DELAY: DLY, PAN, TAPE ECHO
MASTER FX: HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR, TRANSIENT, TRANSIENT2, COMPRESSOR, DRIVE, OVERDRIVE, DISTORTION, FUZZ, CRUSHER, PHASER, FLANGER, SBF, NOISE
Other: SIDE CHAIN (for EXT IN), SCATTER (as one of AUTO FILL IN function)Display16 characters, 2 line (backlit LCD)

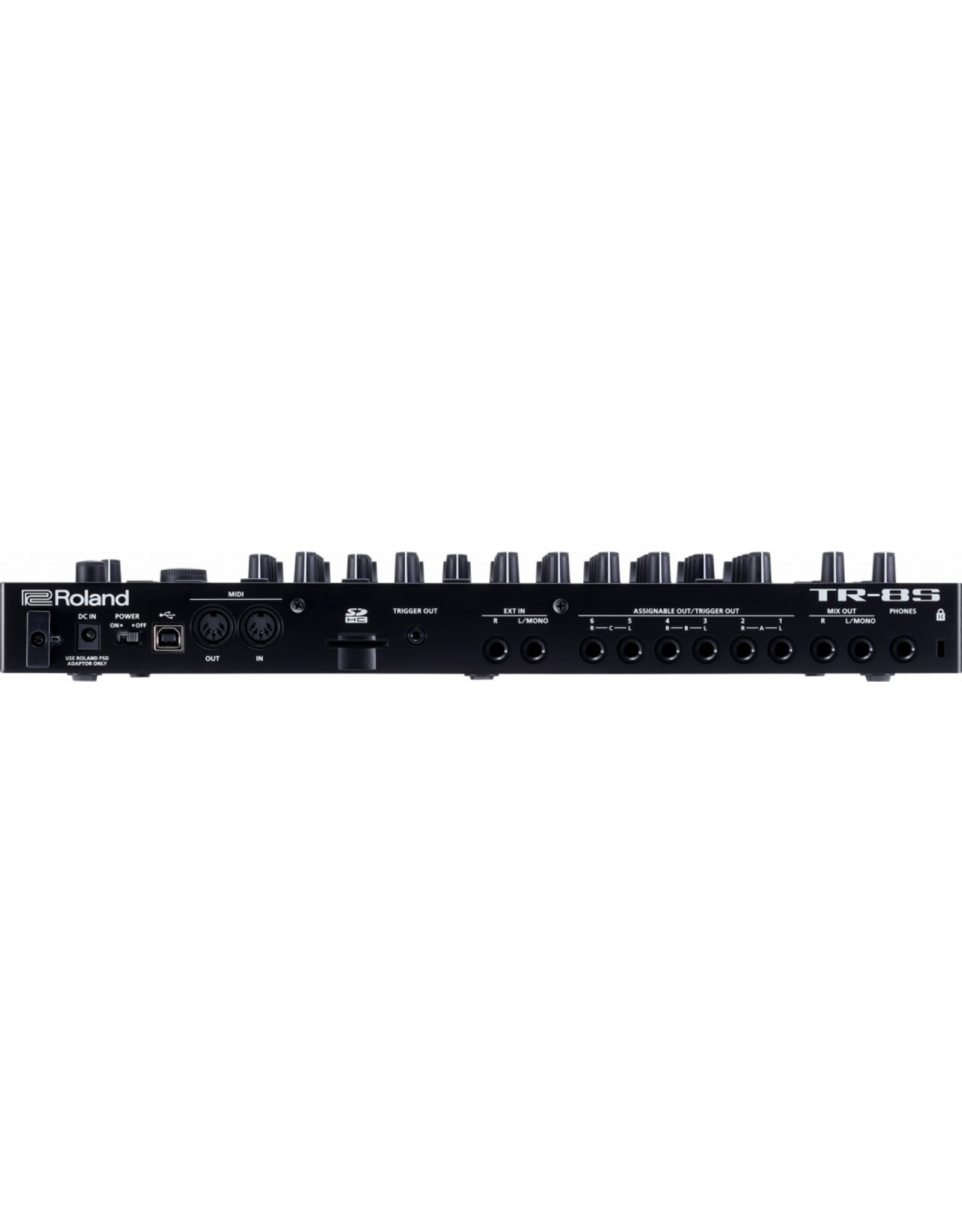

7 segments, 4 characters (LED)External StorageSD Card (SDHC supported) for backup/restore function and import sample dataConnectorsPHONES jack: Stereo 1/4-inch phone type
MIX OUT (L/MONO, R) jacks: 1/4-inch TRS phone type
ASSIGNABLE OUT/TRIGGER OUT (1 – 6) jacks: 1/4-inch phone type
EXT IN (L/MONO, R) jacks: 1/4-inch phone type
TRIGGER OUT jack: Miniature phone type
MIDI (IN, OUT) connectors
USB port: USB type B (Audio, MIDI)
DC IN jackPower SupplyAC adaptorCurrent Draw2,000 mAAccessoriesAC adaptor
Owner's manual
Leaflet “USING THE UNIT SAFELY”SIZE AND WEIGHTWidth409 mm
16-1/8 inchesDepth263 mm
10-3/8 inchesHeight58 mm
2-5/16 inchesWeight2.1 kg
4 lbs. 11 oz.
