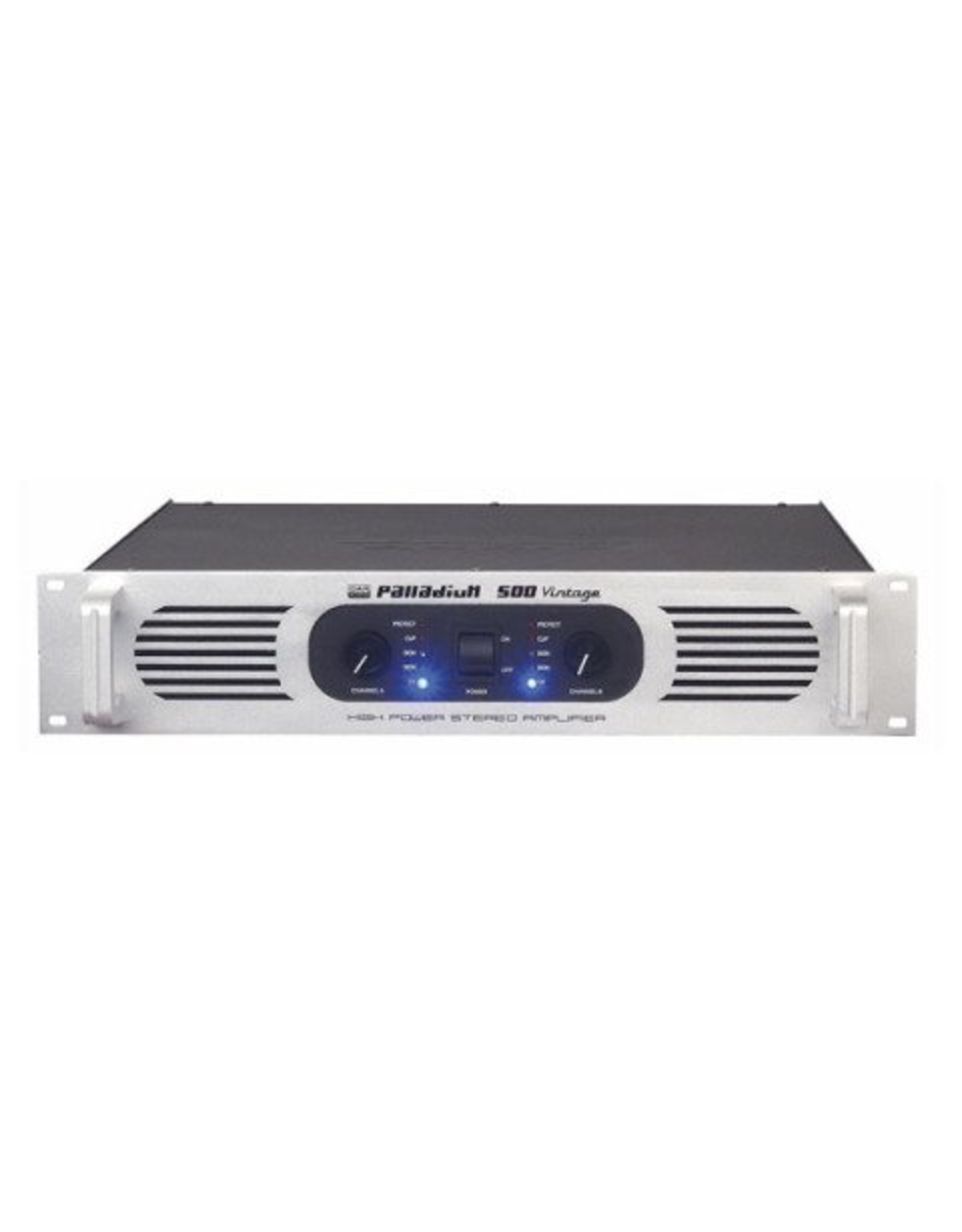

DAP-Audio P-500 Stereo Power Amplifier, D4132
| Artikelnummer: | P-500 |
| Levertijd: | Op voorraad in het magazijn, levertijd 3 - 5 dagen |
• Over 12 years of proven quality
• Advanced protection circuits
• Natural sound quality
The Palladium amplifier range has proven itself for many years. They give real and save power to your speakers. With already more than 12 years of production and experience the palladium is equipped with the best amplification and protection circuits. They are available in the original silver vintage look or black housing. If you need reliability, real and safe power in an affordable price range the Palladium amplifier range is what you need.
Output Power, 1000 Hz, THD+N at 1%,
Both Channels Driven:
Stereo mode: 8 Ohm: 2x 180 Watt RMS
4 Ohm: 2x 270 Watt RMS
2 Ohm: Not Allowed
Bridge mode: 8 Ohm: 540 Watt RMS
4 Ohm: Not Allowed
Frequency Response: 20 - 45,000 Hz, -1 dB
THD+N: < 0.05%
Intermodul. Distortion: < 0.01%
Damping Factor at 8 Ohm: > 250
Slew Rate: > 40 V/µS
Input CMRR: > 60 dB
Crosstalk 20 - 20,000 Hz: > 60 dB
Signal to Noise Ratio: > 105 dB A-weighted
Input Sensitivity: 1 V~, +2.2 dBu
Max. Input Voltage: +22 dBu
Input Impedance: 20 kOhm Balanced
10 kOhm Unbalanced
Protection: Clip Limiter (Fixed)
Short Circuit
Input Overload
Output Overload
DC Voltage
High Temperature
Output Modes (Select.): Stereo / Parallel / Bridge
Cooling: Dual Speed Fan
Airflow: Front to Back

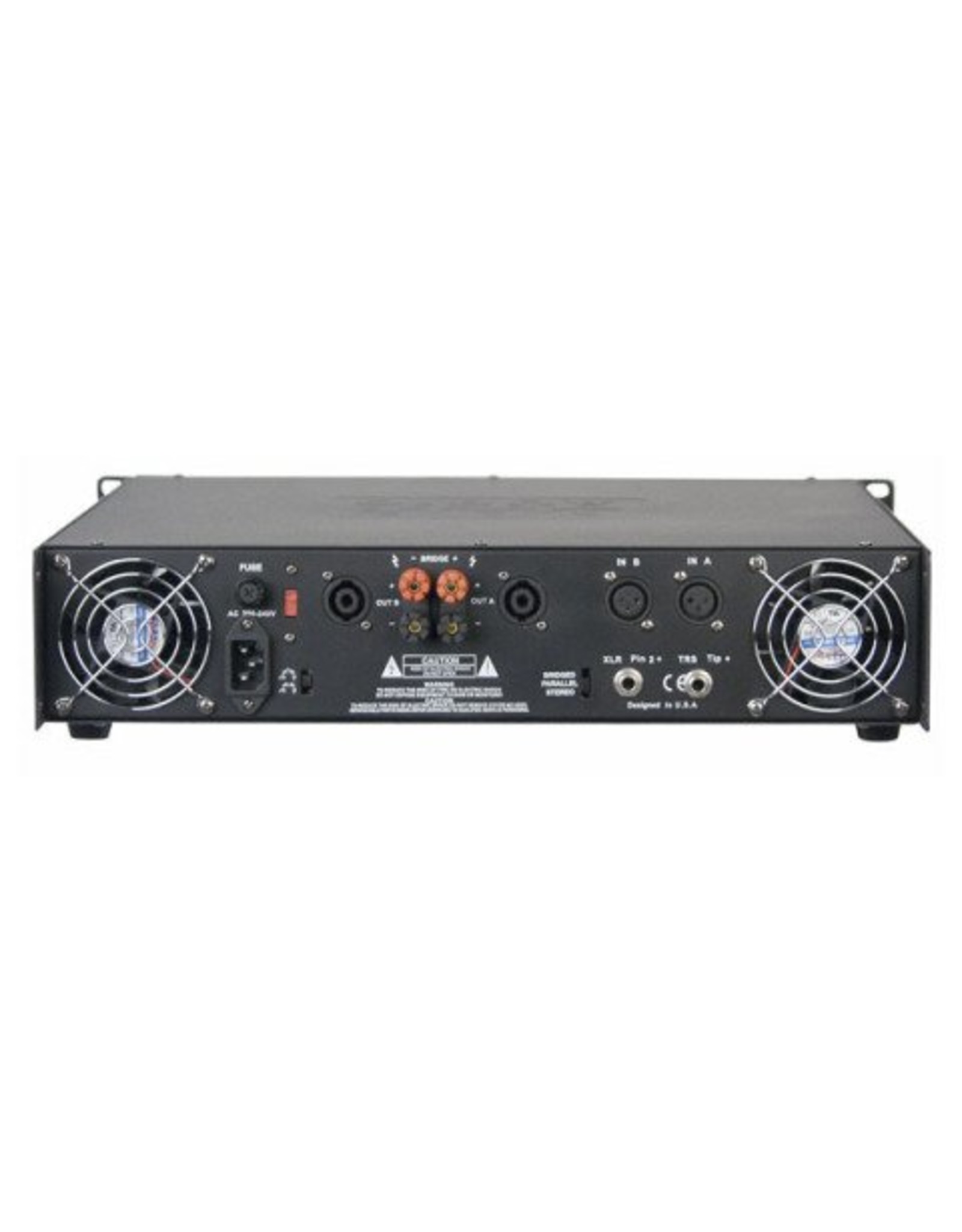

Input / Link Connector: XLR / Jack
Output Connector: 2x Speakon,
2 Pair Bindings Posts
Groundlift Switch: Yes
Dimensions (LxWxH): 483 x 430 x 89 mm
Net Weight: 11,78 kg
Power Supply: 200 - 240 V~, 50 Hz
Main Fuse: 6.3AT, 5 x 20 mm
Power Consump. (2 x 4 Ohm): 850 Watt
