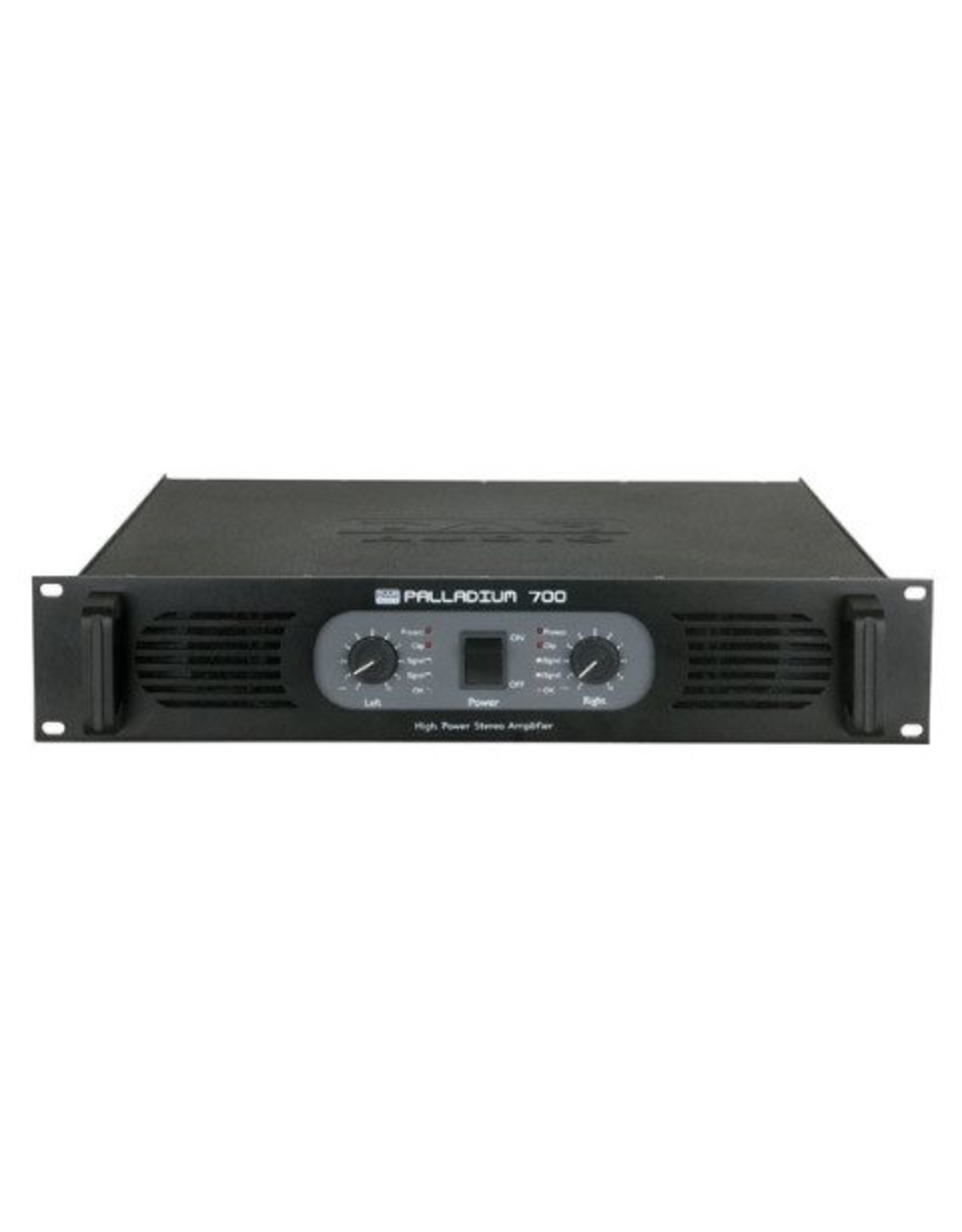

DAP-Audio P-700 Stereo Power Amplifier, Black, D4133B

€--,-- €--,--
Artikelnummer: P-700
Levertijd: Op voorraad in het magazijn, levertijd 3 - 5 dagen
• Affordable and reliable power
• Over 12 years of proven quality
• Advanced protection circuits
• Natural sound quality



The Palladium amplifier range has proven itself for many years. They give real and save power to your speakers. Almost 15 years of production time and over 60.000 palladiums sold the palladium is a real standard in the industry. You can choose between the silver vintage look or the black look. If you need reliability, real and safe power in an affordable price range the Palladium amplifier range is what you need.

Specifications

Output Power, 1000 Hz, THD+N at 1%,
Both Channels Driven:

Stereo mode: 8 Ohm: 2x 240 Watt RMS
4 Ohm: 2x 360 Watt RMS
2 Ohm: Not Allowed
Bridge mode: 8 Ohm: 720 Watt RMS
4 Ohm: Not Allowed
Frequency Response: 20 - 45,000 Hz, -1 dB
THD+N: < 0.05%
Intermodul. Distortion: < 0.01%
Damping Factor at 8 Ohm: > 250
Slew Rate: > 40 V/µS
Input CMRR: > 60 dB
Crosstalk 20 - 20,000 Hz: > 60 dB
Signal to Noise Ratio: > 105 dB A-weighted
Input Sensitivity: 1 V~, +2.2 dBu
Max. Input Voltage: +22 dBu
Input Impedance: 20 kOhm Balanced
10 kOhm Unbalanced

Protection: Clip Limiter (Fixed)
Short Circuit
Input Overload
Output Overload
DC Voltage
High Temperature


Output Modes (Select.): Stereo / Parallel / Bridge
Cooling: Dual Speed Fan
Airflow: Front to Back
Input / Link Connector: XLR / Jack
Output Connector: 2x Speakon,
2 Pair Bindings Posts
Groundlift Switch: Yes
Dimensions (LxWxH): 483 x 430 x 89 mm
Net Weight: 13,44 kg
Power Supply: 200 - 240 V~, 50 Hz
Main Fuse: 8AT, 5 x 20 mm
Power Consump. (2 x 4 Ohm): 1100 Watt
