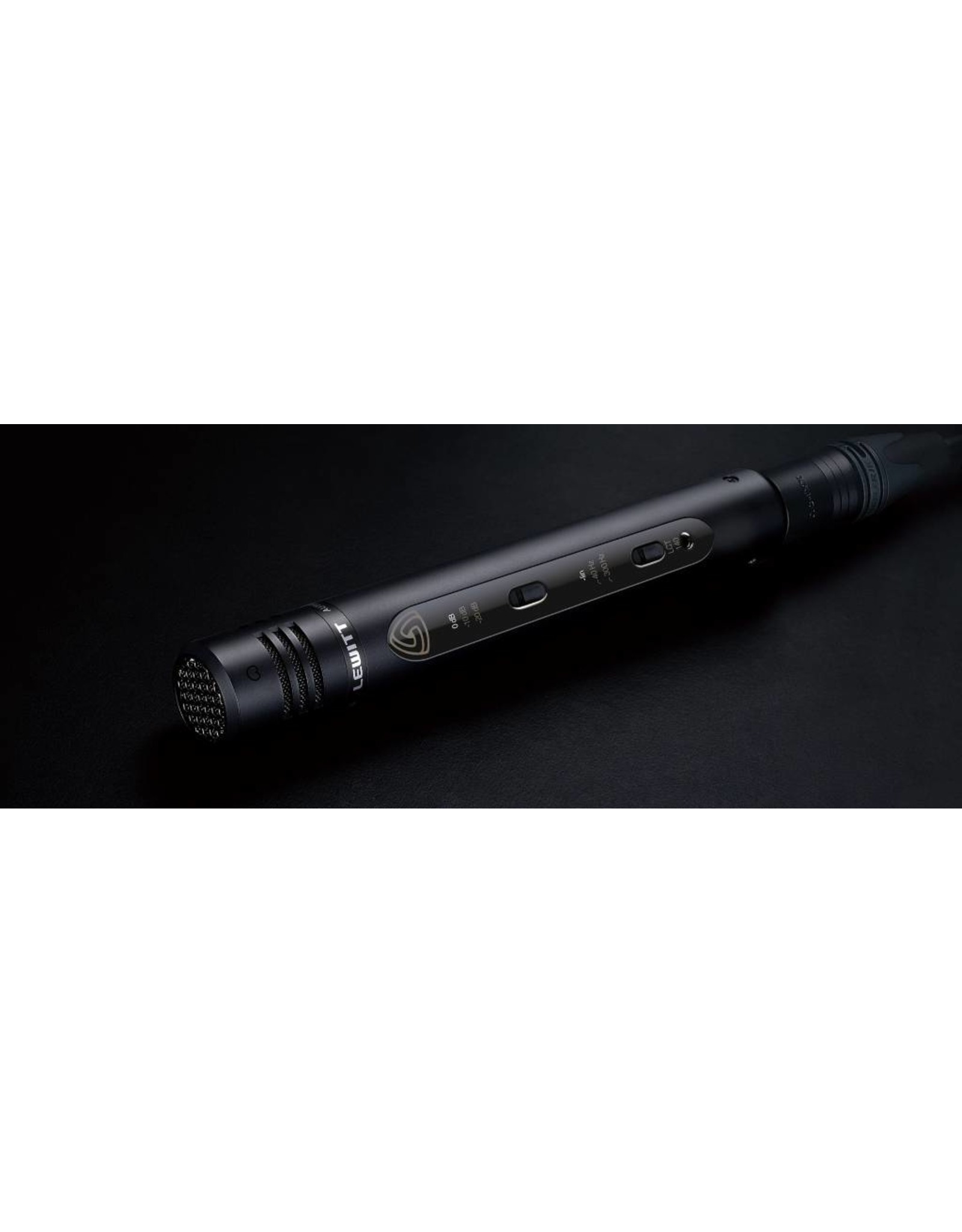

LCT140 authentica condensator microfoon

€--,--
Artikelnummer: lct140
Levertijd: Op voorraad, direct leverbaar in de winkel en de volgende dag via de webshop besteld voor 14:00uur

LCT 140

Small diaphragm for big recordings

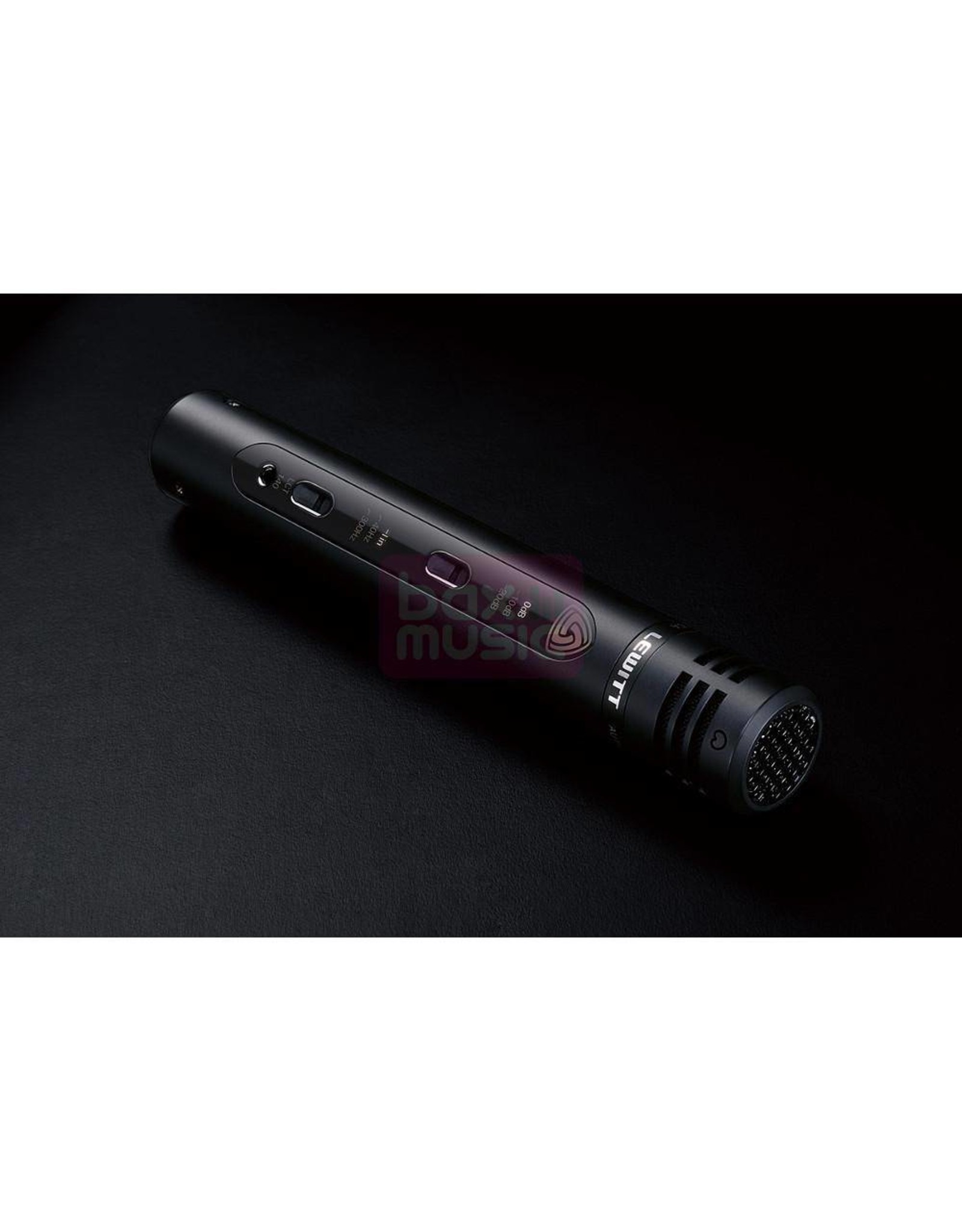

The LCT 140 is an extremely versatile, easy-to-use, compact 2/3" back-electret condenser microphone that is perfectly suited for quality-conscious users. Its low-mass diaphragm delivers an exceptionally clear and natural sound, making it the perfect fit for acoustic instruments including drums and percussion. The LCT 140's uniform cardioid pickup pattern effectively suppresses off-axis sound. Its linear frequency response and high dynamic range result in transparent and distortion-free sound recordings. The LED display can optionally be switched on and off for better handling in different environments. In short, the LCT 140 is an extremely versatile all-round microphone.

Specifications

Type

Condenser, permanently polarized

Acoustical operating principle

Pressure gradient transducer

Transducer Ø

17 mm, 0.67 in

Polar pattern

Cardioid

Frequency range

30 ... 20.000 Hz

Sensitivity

8 mV/Pa, -42 dBV/Pa

Equivalent noise level

19 dB (A)

Max. SPL for 0.5 % THD

143 dBSPL, 0 dB pre-attenuation

Signal / noise ratio

75 dB (A)

Dynamic range

124 dB (A)

Pre-attenuation pad

 0 dB
-10 dB
-20 dB

Low-cut filter

linear
40 Hz (12 dB/oct)
300 Hz (6 dB/oct)

Internal impedance

150 Ω

Rated load impedance

1.000 Ω

Supply voltage

48 V +/- 4 V

Current consumption

5.3 mA

Connector

Gold plated 3-pin XLR

Microphone dimensions

24 dia. x 160 mm, 0.94 dia. x 6.3 in

Microphone net weight

195 g, 6.88 oz

HIGHLY VERSATILE - CRYSTAL CLEAR SOUND

A perfect choice for instrument recording

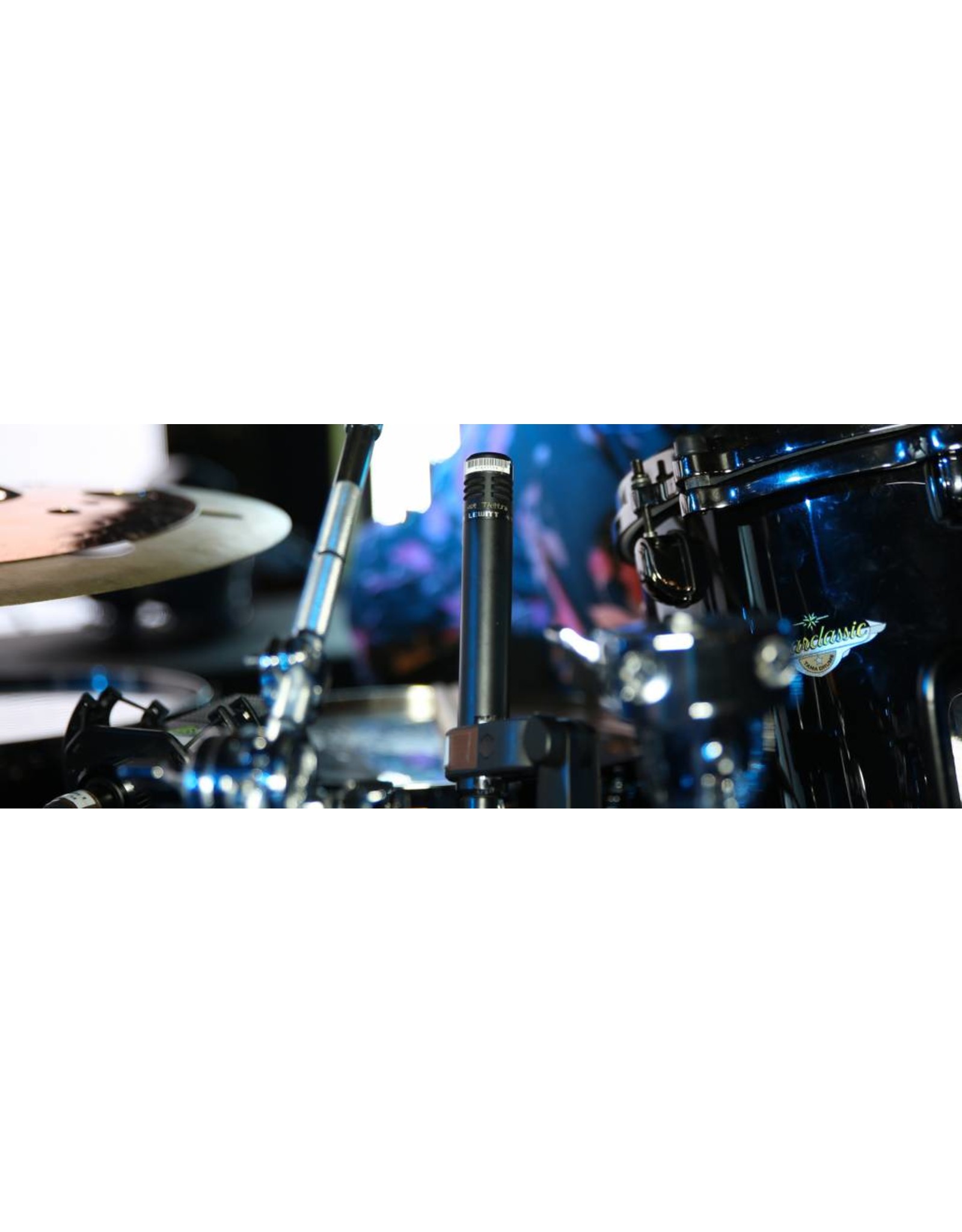

The LCT 140 is a compact 2/3" back-electret condenser microphone. Its low-mass diaphragm delivers an exceptionally clear and natural sound. It is the perfect fit for drums, percussion and acoustic instruments - onstage and in the studio.

Exceptional off-axis sound suppression

The LCT 140's cardioid pickup pattern effectively suppresses off-axis sound. Its linear frequency response and high dynamic range result in transparent and distortion-free sound recordings.

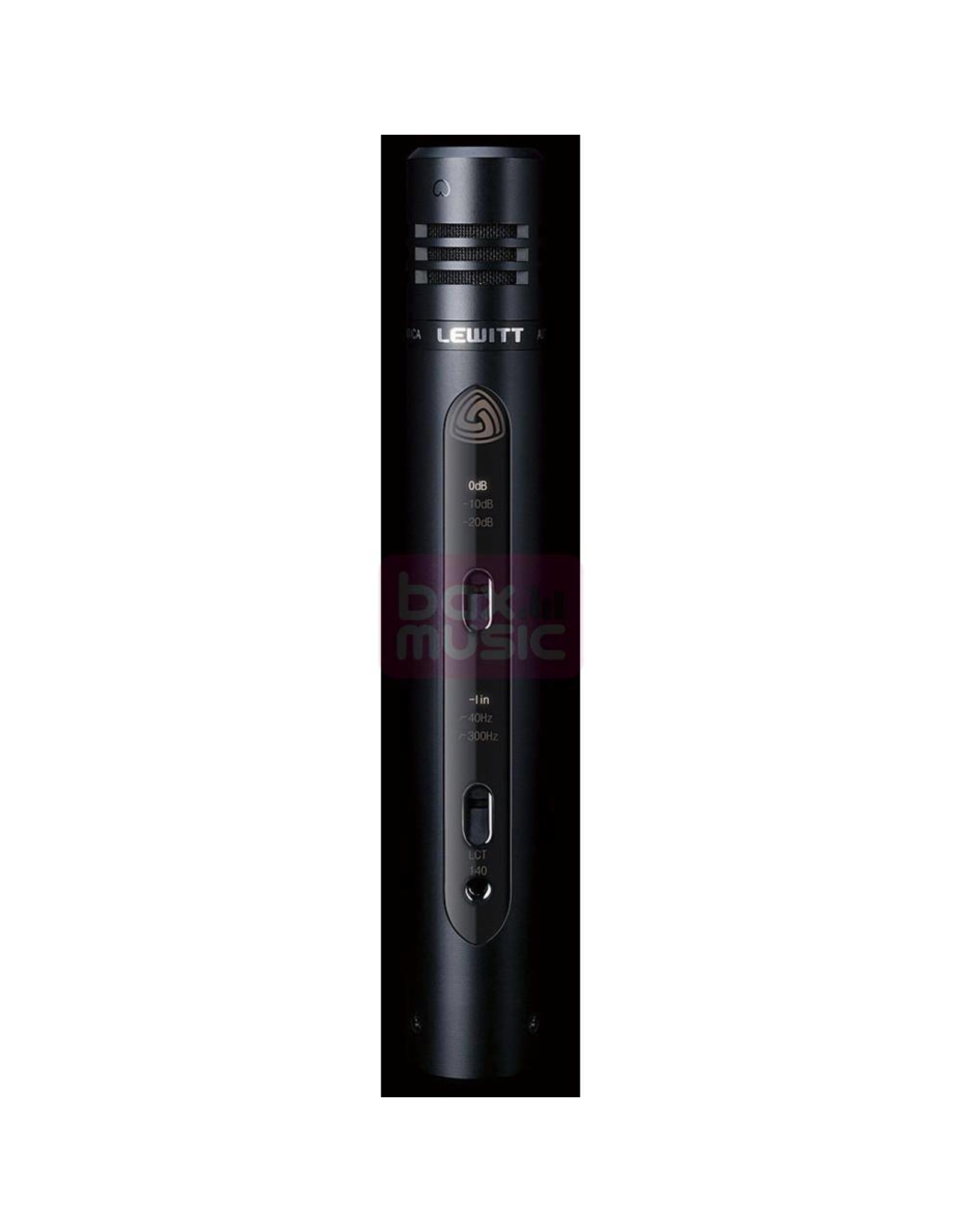

Illuminated user interface

Easy handling in dark environments

The illumination of the user interface makes possible quick and accurate setup of the microphone.

Low-cut and attenuation

Adapt to every situation

Low-cut: linear, 40 Hz, 300 Hz
Attenuation: 0 dB, -10 dB, -20 dB
