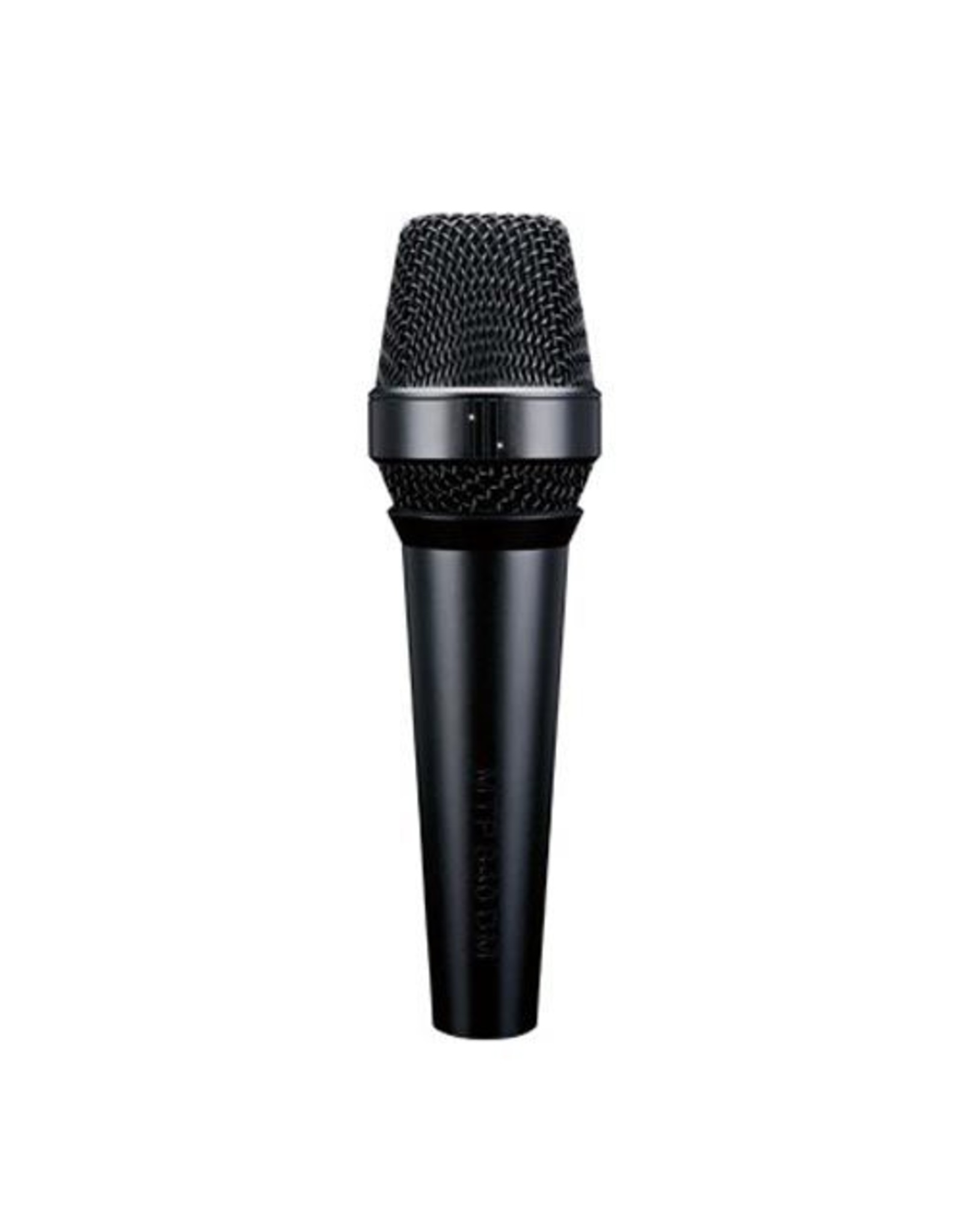

MTP840DM microfoon

€--,--
Artikelnummer: MTP840DM
Levertijd: Op voorraad, direct leverbaar in de winkel en de volgende dag via de webshop besteld voor 14:00uur

MTP 840 DM

Dynamic microphone - condenser sound

Versatility and durability, plus optimal suitability for punishing touring conditions with no compromises on sound: this is what the MTP 840 DM stands for. Its excellent transient response, refined electronics, and superior capsule design make the MTP 840 DM a unique tool for onstage use. Innovatively designed circuitry and the highest-quality components make for exceptionally low self-noise and a maximum of dynamic range when in Active Mode, and the frequency curve, – which is specially tailored for vocal recordings – provides the ultimate in sound quality. A three-step low-cut filter directly influences the proximity effect, permitting adaptation of the mic to individual preferences. The built-in three-position switchable amplifier, is specially adapted to the MTP 840 DM’s components, allowing lossless recording of even far-off sources. A supercardioid polar pattern provides maximum protection against feedback, and the flexibly suspended capsule reduces structure-borne noise to a minimum. The MTP 840 DM transports the artist’s voice in a powerful way, lending it the necessary presence without falsifying its individual character.

Specifications

Type

Dynamic, moving coil

Acoustical operating principle

Pressure gradient transducer

Polar pattern

Supercardioid

Frequency range

40 ... 18,000 Hz

Sensitivity

3.5 mV/Pa, -49 dBV/Pa

Signal / noise ratio

75 dB (A)

Equivalent noise level

19 dB (A)

Dynamic range, passive mode

135 dB (A)

Dynamic range, active mode

121 dB (A) 0 dB gain
115 dB (A) 6 dB gain
109 dB (A) 12 dB gain

Gain settings, active mode

0 dB, 6 dB, 12 dB

Low-cut filter

linear
150 Hz (12 dB/oct)
250 Hz (12 dB/oct)

Internal impedance

600 Ω

Rated load impedance

1,000 Ω

Supply voltage

48 V +/- 4 V

Current consumption

5.5 mA

Connector

Gold plated 3-pin XLR

Microphone dimensions

51 dia. x 183 mm, 2 dia. x 7.2 in

Microphone net weight

336 g, 11.85 oz
