SPD-SX sampling pad - Winkelmodel spdsx
| Artikelnummer: | spdsx |
| Levertijd: | Op voorraad, direct leverbaar in de winkel en de volgende dag via de webshop besteld voor 14:00uur |
garantie 3 jaar
The new SPD-SX Sampling Pad puts powerful sample creation and playback under your sticks with innovative audio-capturing features, expressive playability, three multi-effects engines, and much more. The perfect addition to any acoustic or electronic drum kit, percussion setup, DJ booth, or keyboard rig, the SPD-SX is equally at home on the live stage, in the recording studio, pre-production suite, or dance club. The SPD-SX takes many of the proven concepts from its predecessor and raises them to a new level. Whether you’re firing off one-shot samples, looped phrases, or complete audio playback tracks, the SPD-SX is loaded with the latest technology and tools to get the job done with speed, precision, and convenience. Enjoy the most advanced triggering and sampling technology in a sleek, easy-to-use percussion instrument.
PadsBuilt-in Pads: 9 (with LED Indicators)
* Two external trigger inputs are provided, allowing you to connect up to four Pads.
Maximum Polyphony20 voices
* Maximum polyphony becomes 16 voices according as an operating state.Number of Recordable Wave Data10,000
* Including preload wave data.Sampling Time (Total time for all wave data)Approx. 360 min. in stereo (720 min. in mono)
* Since the internal memory included with the SPD-SX contains preload data, the available sampling time will be less than the time above.
Data Format16-bit linear PCM (WAV/AIFF)Sampling Frequency44.1 kHzKits100Kit Chain8 chains (20 steps per chain)EffectsMaster Effects (21 Types)
Equalizer
Kit Effect 1 (20 Types)
Kit Effect 2 (20 Types)DisplayGraphic LCD 128 x 64 dots

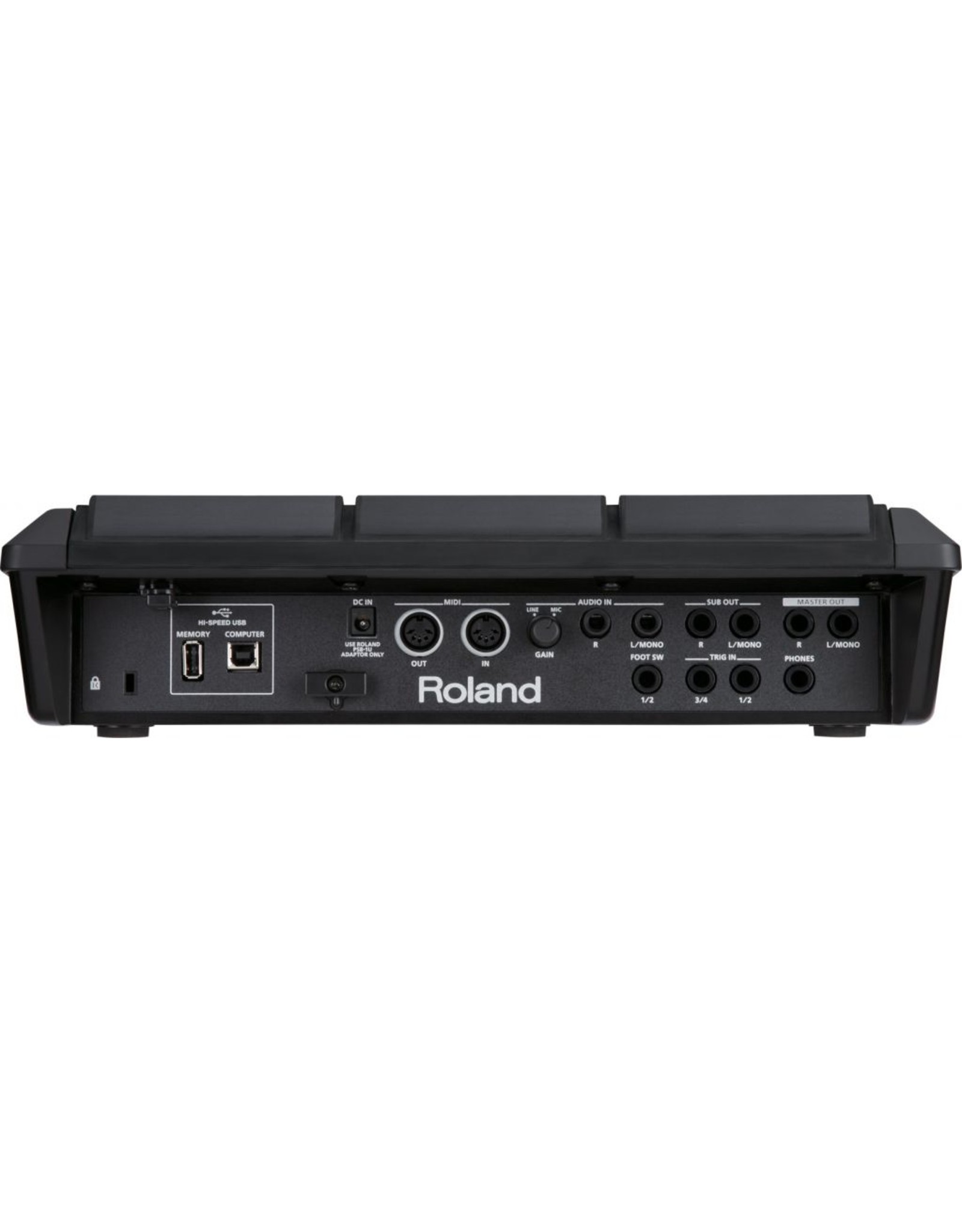

ConnectorsPHONES jack (Stereo 1/4-inch phone type)
MASTER OUT jacks (L/MONO, R) (1/4-inch phone type)
SUB OUT jacks (L/MONO, R) (1/4-inch phone type)
AUDIO IN jacks (L/MONO, R) (1/4-inch phone type) (with LINE-MIC GAIN control)
TRIG IN jacks (1/2, 3/4) (1/4-inch TRS phone type)
FOOT SW jack (1/2) (1/4-inch TRS phone type)
MIDI connectors (IN, OUT)
DC IN jack
COMPUTER connector
USB MEMORY connectorInterfaceHi-Speed USB (USB-MIDI, USB-AUDIO, USB Mass Storage Class, USB Flash Drive)
Power SupplyDC 9 V (AC Adaptor)
Current Draw600 mA
AccessoriesCD-ROM (SPD-SX Wave Manager, USB driver, preload wave data)
Owner's Manual
AC Adaptor
Options (sold separately)Pads (PD series, PDX series)
Cymbals (CY series)
Kick Triggers (KD series)
Pad Stand (PDS-10)
All-Purpose Clamp (APC-33)
Acoustic Drum Trigger (RT-30H, RT-30HR, RT-30K)
Pedal Switch (DP-2)
Footswitch (BOSS FS-5U, BOSS FS-6)
Personal Drum Monitor (PM-10, PM-30)
USB Flash Memory
* Use USB Flash Memory sold by Roland. We cannot guarantee operation if other products are used.
Size and WeightWidth364 mm
14-3/8 inchesDepth331 mm
13-1/16 inchesHeight94 mm
3-3/4 inchesWeight2.5 kg
5 lbs. 9 oz.0 dBu = 0.775 Vrms
In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
