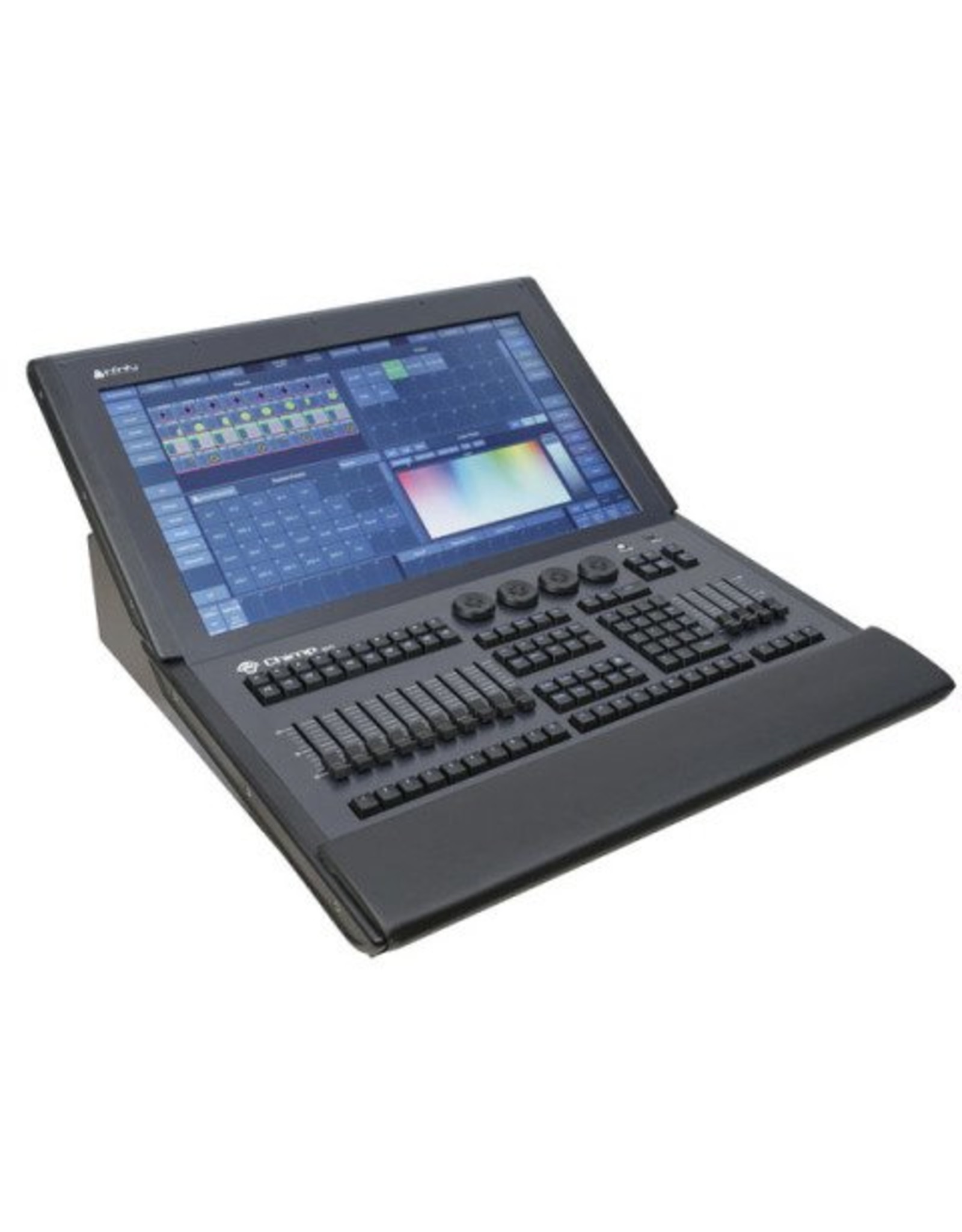

Infinity Chimp 300 DMX tafel console
| Artikelnummer: | 55010 |
| Beschikbaarheid: | Op voorraad (1) |
| Levertijd: | Op voorraad, direct leverbaar in de winkel en de volgende dag via de webshop besteld voor 14:00uur |
Based on standard programming syntaxes with encoders and hard-keys, these compact controllers offer access to familiar screens(*) and will allow you to quickly program a great show.
Regardless of the application - touring, rental, theatre, multipurpose venue, education, or house of worship - a Chimp Light Controller provides you with all the necessary tools.
Smart, in-house designed software, industry-standard syntaxes, and easy-to-use screens: the Chimp Light Controller will enable you to program your best show in a matter of minutes.

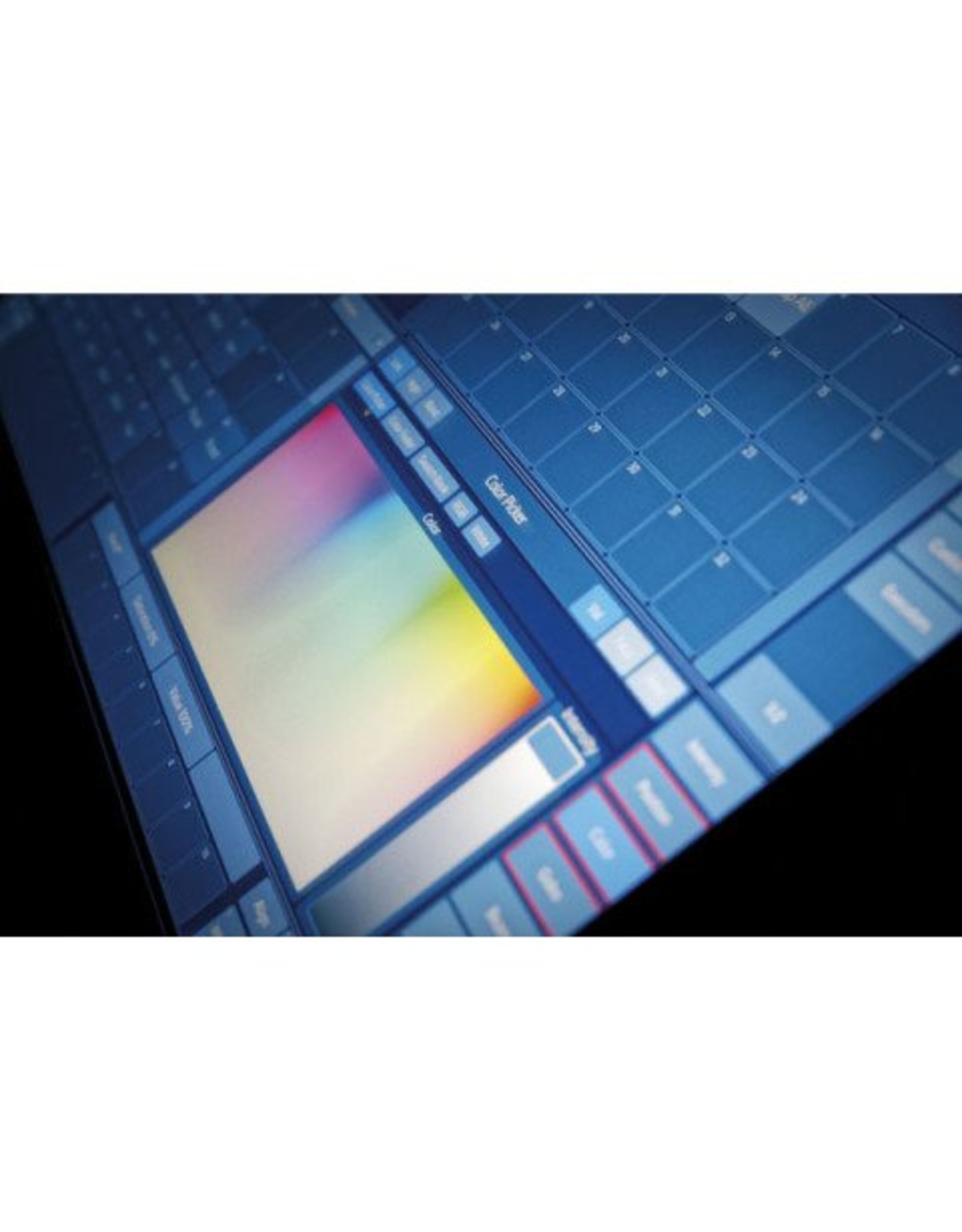

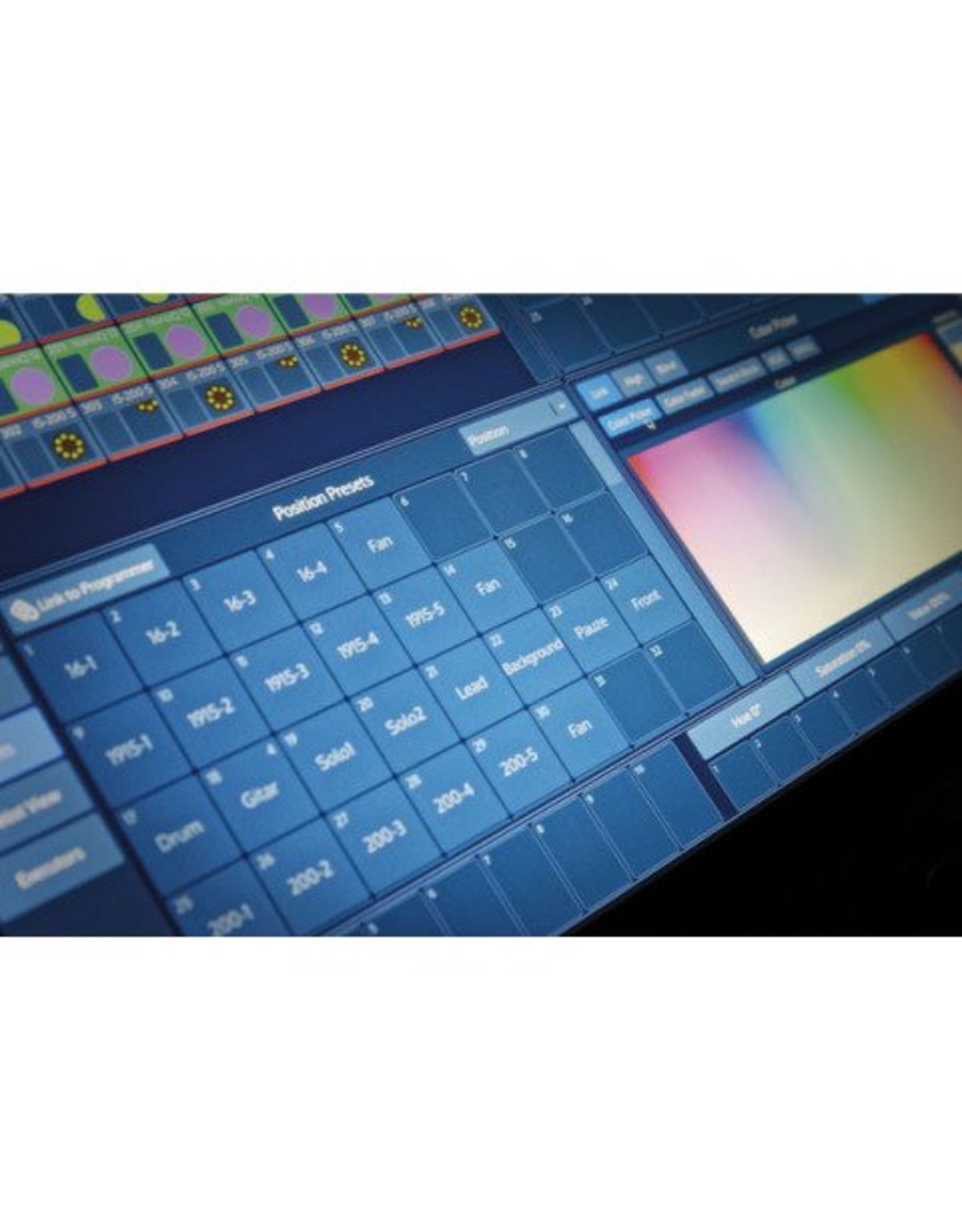

(*) The Chimp 300 houses a 22" full HD touchscreen with the possibility to connect one extra external touchscreen.
Programming
• 4 Encoders • Familiar keys and numeric keypad • Colour picker • Filter libraries by Lee, Rosco, and Apollo • Gobo Picker • User-definable groups • User-definable presets • Effects engine • Fan functions • Built-in Fixture library
Playback
• 10 faders with multiple pages • Go and Pause/Reverse keys • 10 executer keys with multiple pages • 4 user-definable master faders • Cue list screen
Infinity® ‘Chimp' Moving Light Controller
Infinity® Chimp Light Controllers: the ultimate in user-friendly design.
Based on standard programing syntaxes with encoders and hard-keys, these compact controllers offer access to familiar screens(*) and will allow you to quickly program a great show.
Regardless of the application - touring, rental, theatre, multipurpose venue, education, or house of worship - a Chimp Light Controller provides you with all the necessary tools.
Smart, in-house designed software, industry-standard syntaxes, and easy-to-use screens: the Chimp Light Controller will enable you to program your best show in a matter of minutes.
(*) The Chimp 100 can connect up to two external touchscreens and the Chimp 300 houses a 22" full HD touchscreen with the possibility to connect one extra external touchscreen.
Programming
• 4 Encoders • Familiar keys and numeric keypad • Colour picker • Filter libraries by Lee, Rosco, and Apollo • Gobo Picker • User-definable groups • User-definable presets • Effects engine • Fan functions • Built-in Fixture library
Playback
• 10 faders with multiple pages • Go and Pause/Reverse keys • 10 executer keys with multiple pages • 4 user-definable master faders • Cue list screen
Specifications

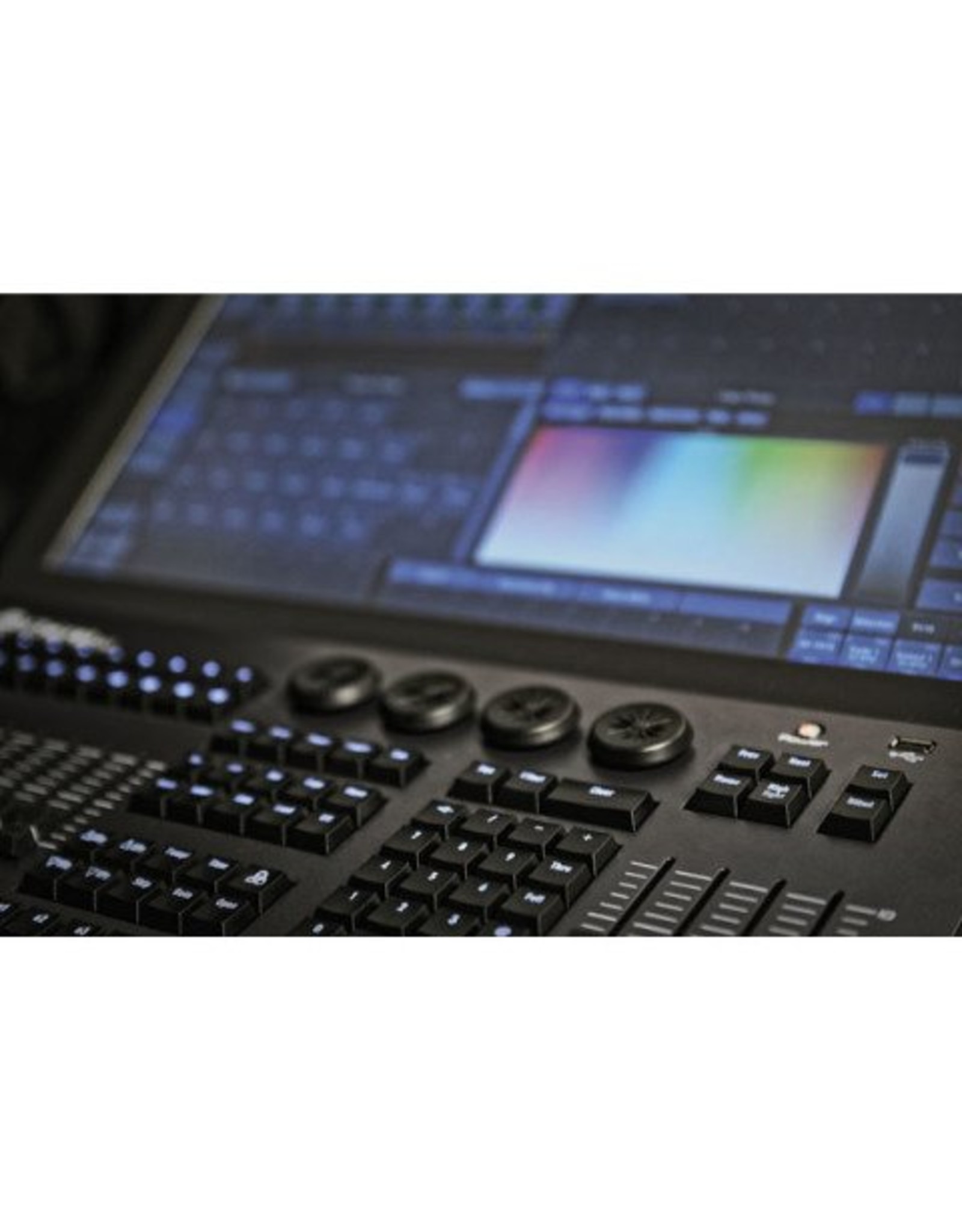

Technical Features:• Familiar keys, numeric keypad and 4 Encoders

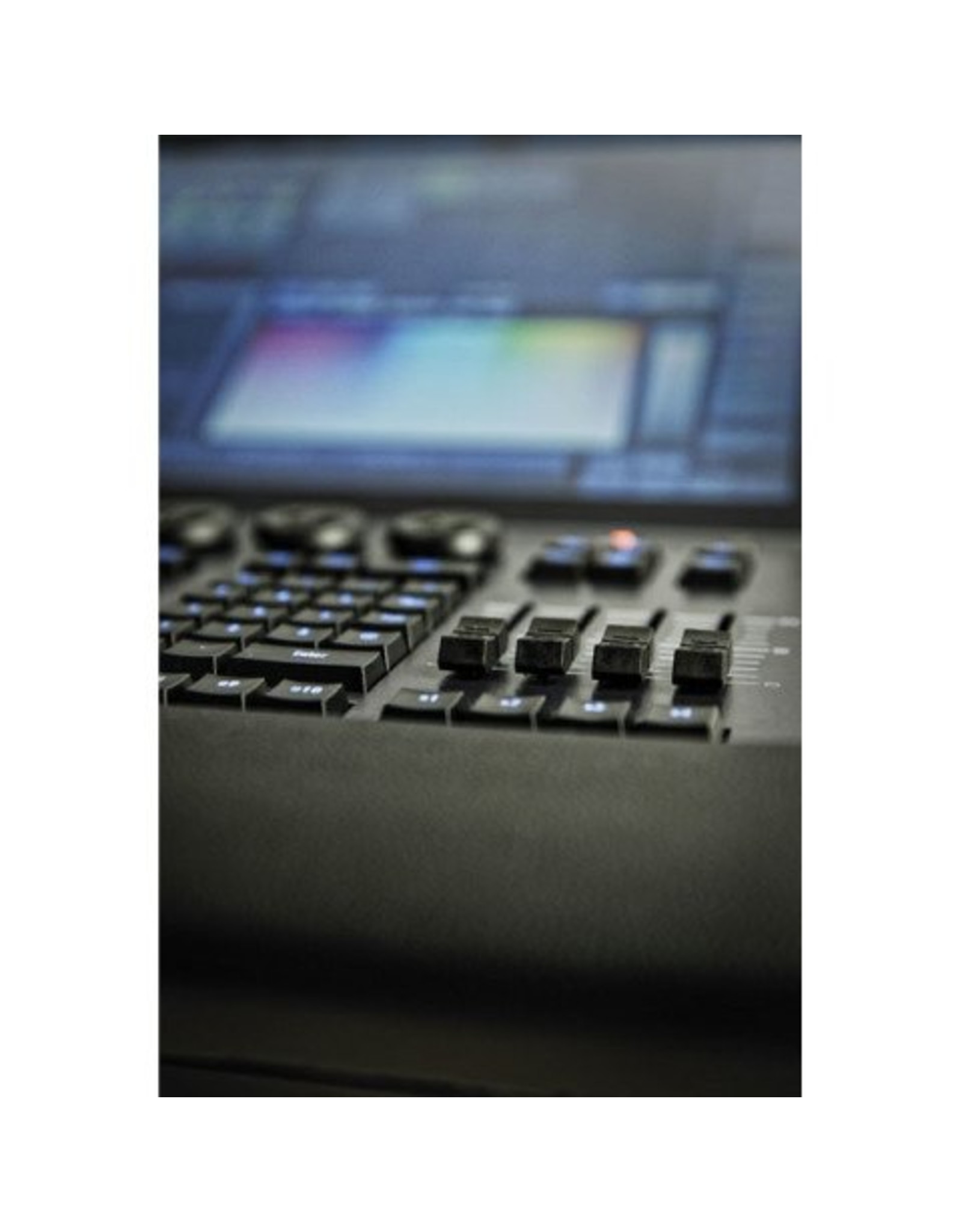

• 10 Playback faders with Go, Pause/Reverse, Flash keys on multiple pages
• 10 Executer/Flash keys on multiple pages
• Color picker, Swatchbook by Lee, Rosco and Apollo Filters
• Gobo Picker
• User definable groups and presets
• User definable display layout
• 4 user definable master faders
• Effects engine
• Fan functions on all attributes
• Built in Fixture library and Fixture builder
• Cue list screen

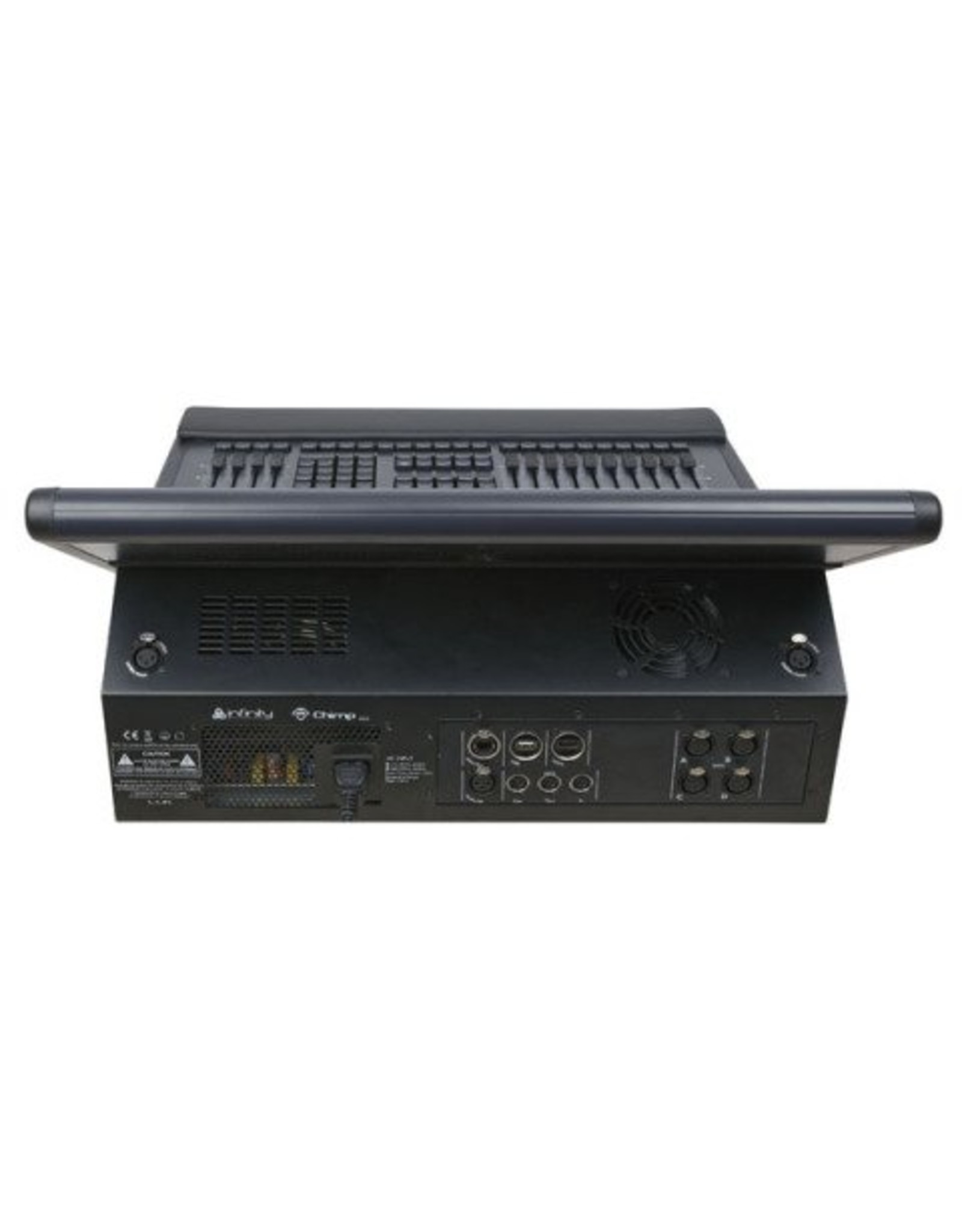

Connectors
• 4 x DMX 5-pin opto-isolated in/outs (RDM ready)
• Ethernet/Artnet
• HDMI monitor out
• Midi In/Thru/Out 5-pin DIN
• Audio/SMPTE/LTC Input 3-pin XLR
• IEC Power Supply Input
• 2 x Dimmable Desklight outputs 3-pin XLR
• 2 x USB-B connectors
Software
• 4 universe 2048 channels DMX
• 300 Fixtures
• 10000 memories
• 400 memory stacks
• 100 groups
• 9 x 100 presets (position, color, beam, effects, etc.)
• Command line interface
• Output visualizer
• Tracking and non-tracking options
Physical
Display: 22 inch 1920x1080 Hull HD
Touch: Digital resistive touch
Housing: Metal & flame-retardant plastic side covers
Dimensions: 647 x 575 x 279mm (LxWxH)
Weight: 18Kg
Ambient Temp. Range: 0 ~ 40°C
