UI16 digitale mixer

Home / UI16 digitale mixer

Artikelnummer:	UI16
Levertijd:	Op voorraad, direct leverbaar in de winkel en de volgende dag via de webshop besteld voor 14:00uur

UI16

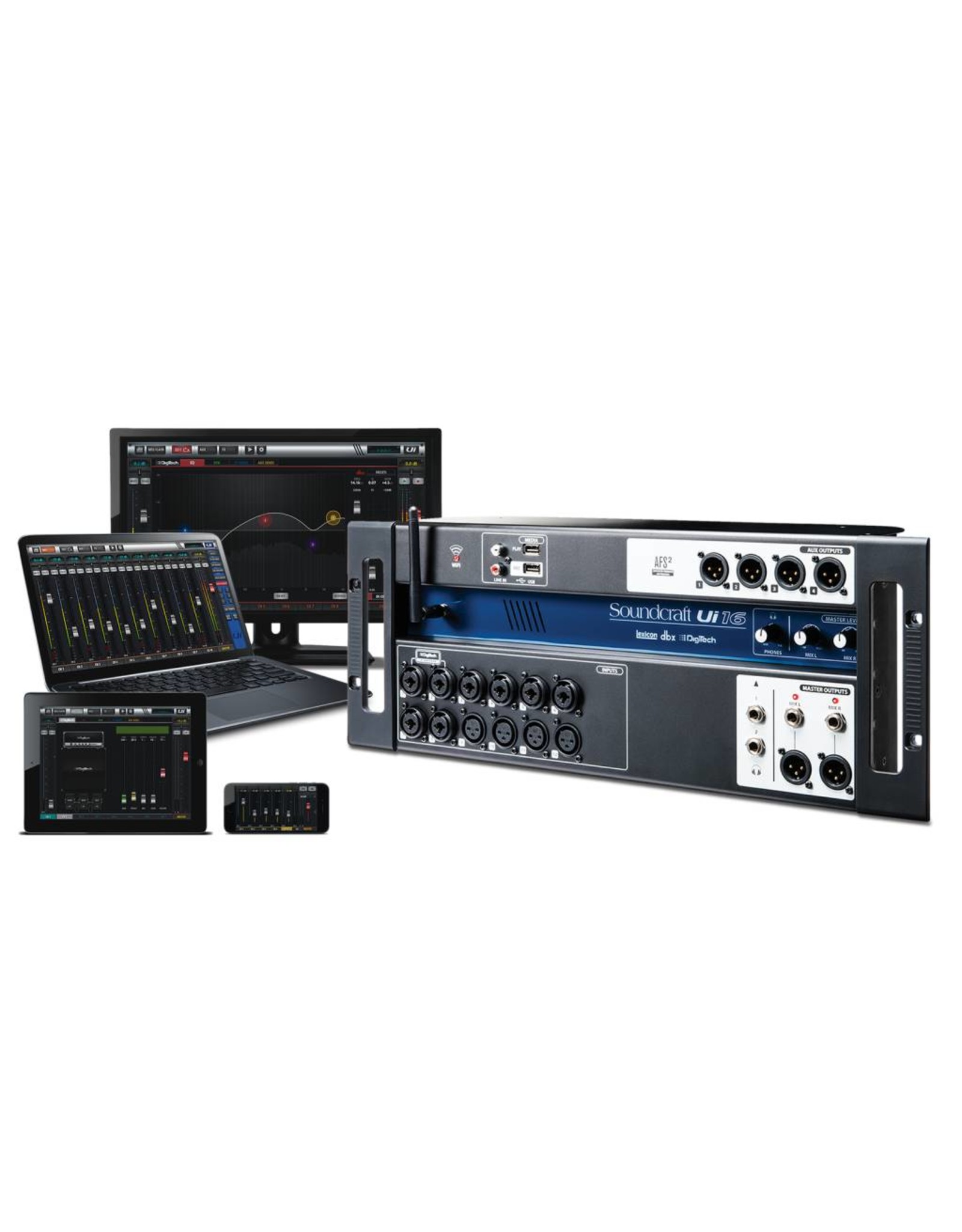

The Ui Series mixers feature cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, the Ui12 and Ui16 each feature built-in HARMAN signal processing from dbx, DigiTech and Lexicon, including dbx AFS2, DigiTech Amp Modeling, and more. Both models feature fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser and noise gate on input channels.

Both mixers offer 31-band graphic EQ, noise gate and compressor on all outputs, plus real-time frequency analyser (RTA) on inputs and outputs. Built in are three dedicated Lexicon FX busses: Reverb, Delay and Chorus. In addition, mixer controls include Subgroups, Mute groups and View groups, among others. The Ui Series mixers feature full Show/Snapshot recallability with channel recall safes. while security lockout features allow customization of device access to only specific functions and mixes if needed. Both mixers also offer independent network interfaces on board for simultaneous control by Wi-Fi and Ethernet, plus a floor-ready rugged chassis for live applications.

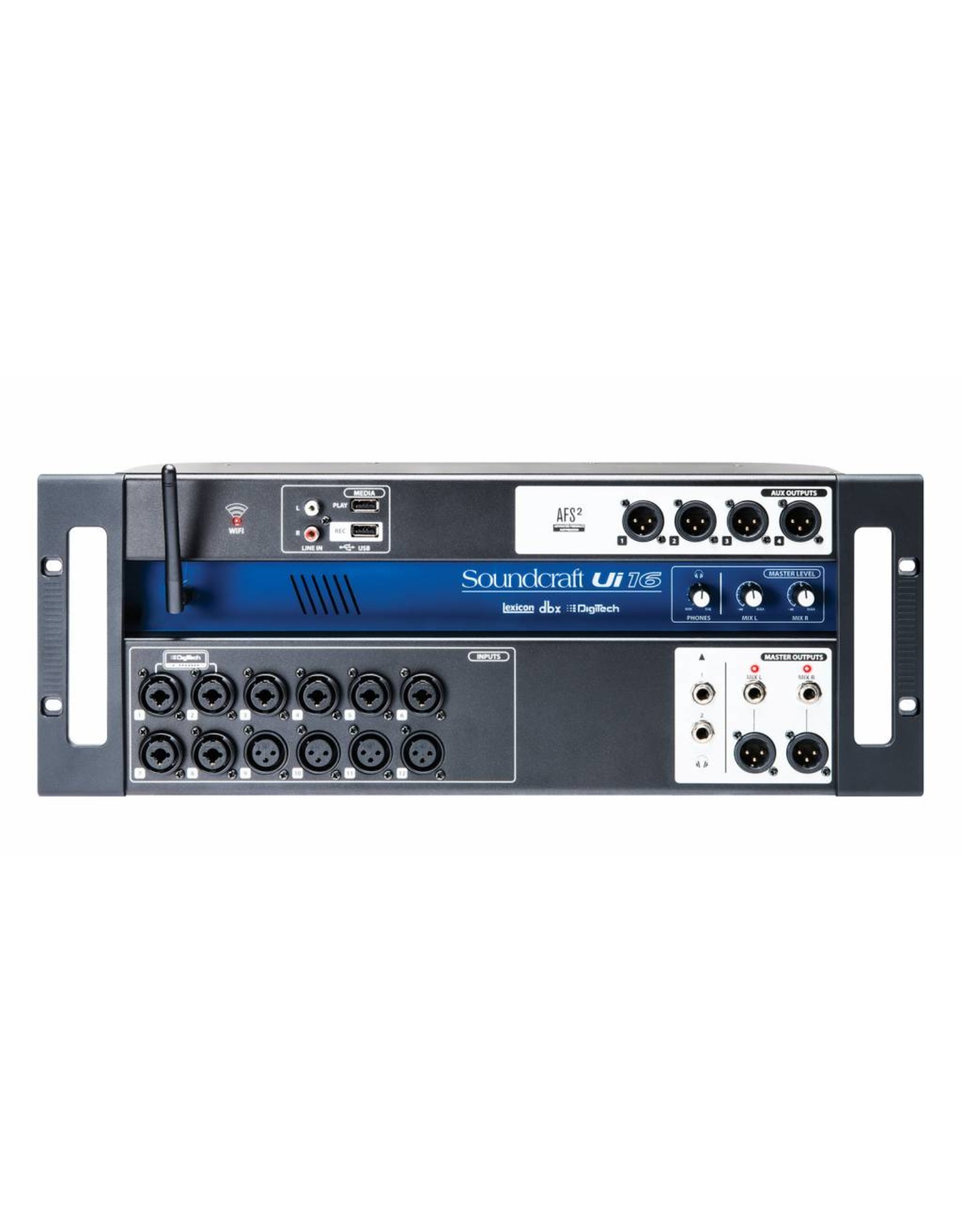

The Ui16 boasts eight XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi- Z/instrument inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with four balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, plus balanced stereo XLR and quarter-inch main outputs. Two-channel USB audio playback is compatible with MP3, WAV and AIFF formats, and 2-channel USB Record direct-to-memory devices functionality is possible as well. The Ui16 also has an HDMI display connection output.

Software Demo

Choose a screen size to preview the Ui16 web-based mixer application:

Phone

Tablet

Videos

Application Overviews

Product Videos

How To Use

Features

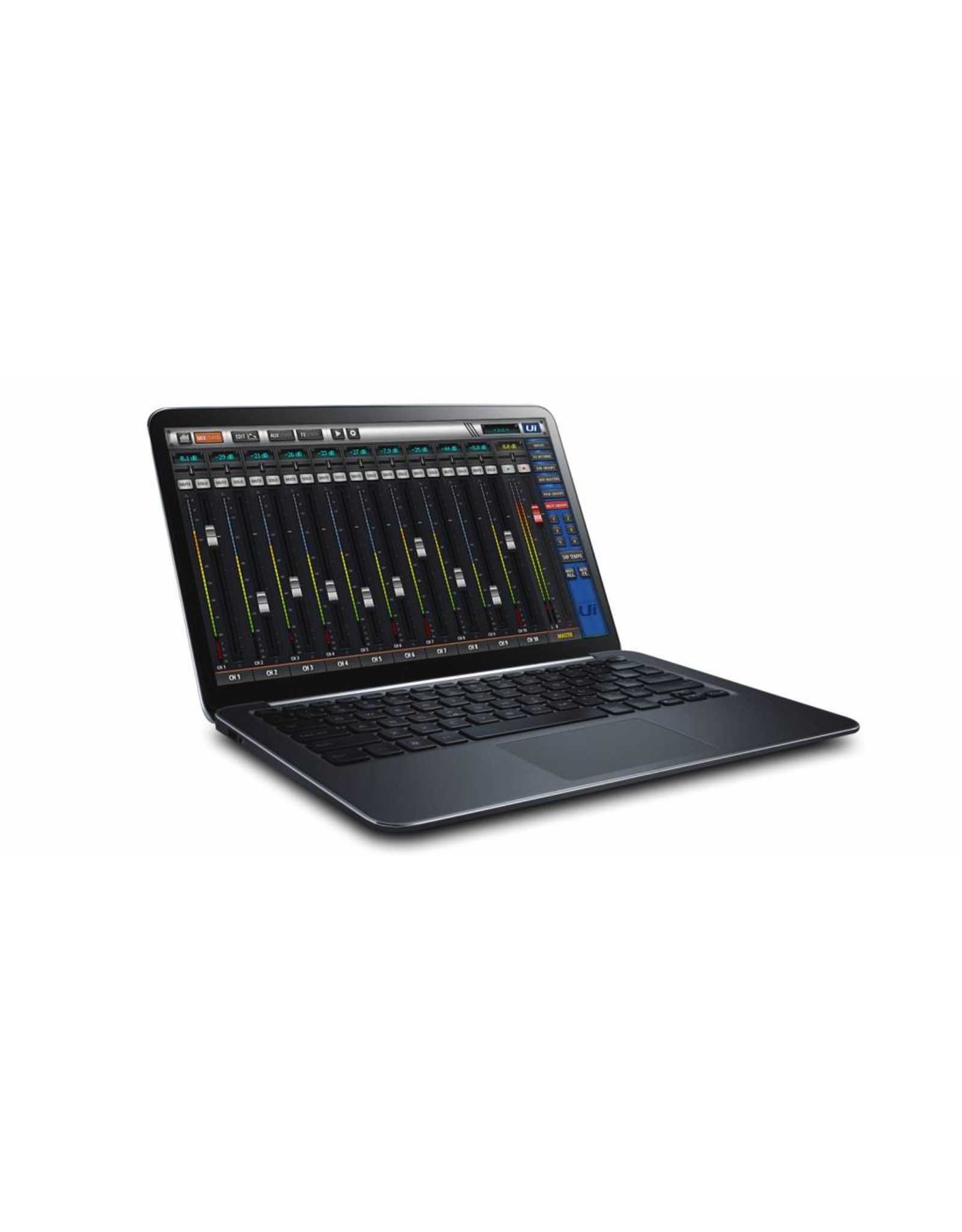

Tablet/PC/Smartphone Controlled Digital Mixer
Integrated Wi-Fi
Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
Use up to 10 control devices (tablets, phones, PCs) simultaneously
Legendary Harman Signal Processing from dbx®, Digitech®, and Lexicon®
Fully recallable and remote-controlled mic preamps
4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels

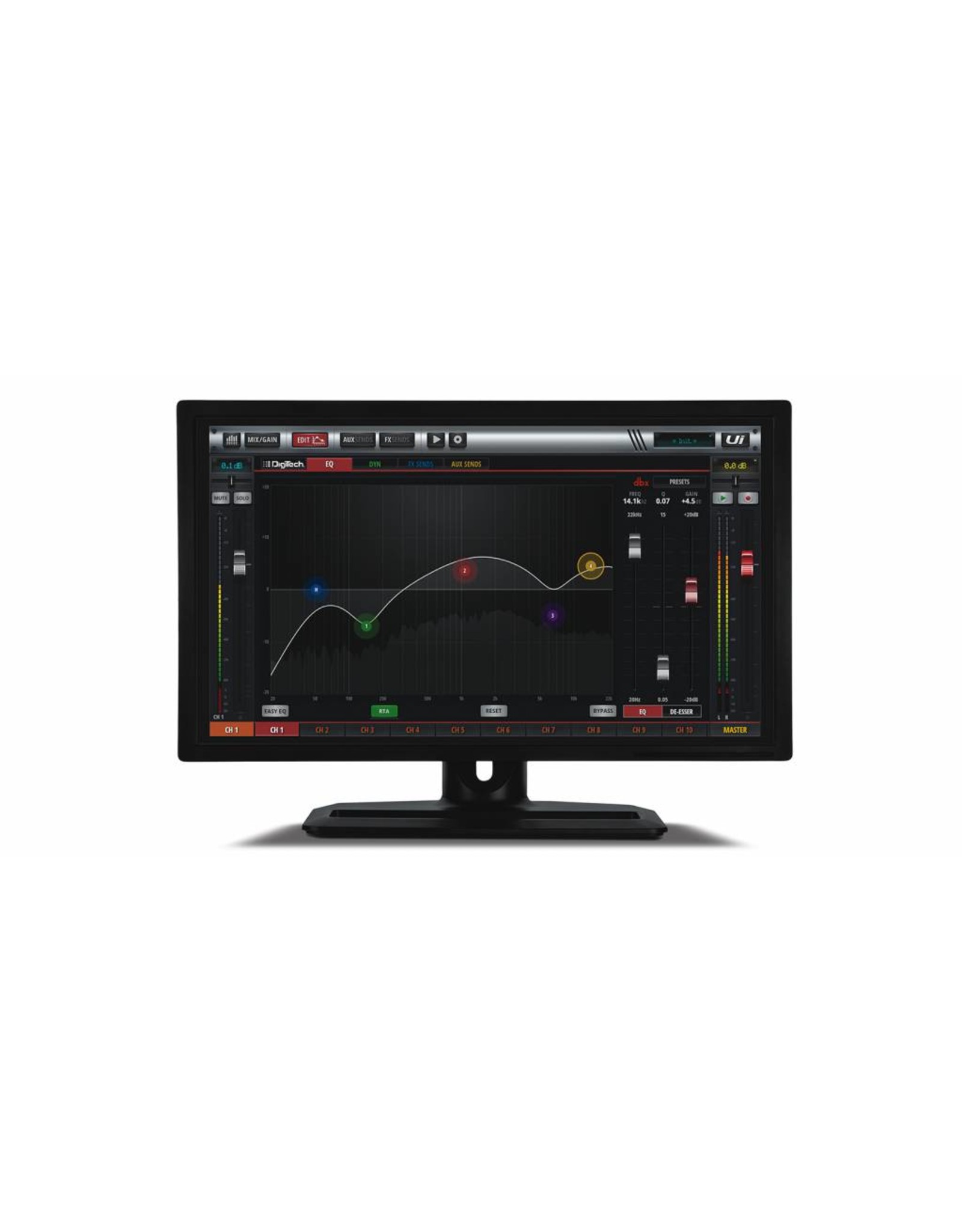

31-band Graphic EQ, Noise Gate and Compressor on all outputs
Real-Time Frequency Analyser (RTA) on inputs and outputs
3 dedicated Lexicon® FX effects processors: Reverb, Delay and Chorus
Subgroups, Mute Groups, View Groups, and more mixer controls
Show/Snapshot recall with channel safes and security lockout
2-channel USB audio playback and recording
Password-protected Access limitation system
Sync ID (multiple browser windows staying in channel Sync)

Public Beta Firmware Download

Click here for information on public beta Ui12 and Ui16.

This build is required for use with HARMAN Connected PA app.

Specifications

Height	110mm (4.3")
Width	177mm (7.0")
Length	483mm (19.0")
Weight	3.61kg (7.9lb)

Downloads

Other Software

Owners Manuals

Ui12/16 User Guide v3.0 (English) [37.1 MB]
Ui12/16 User Guide V3.0 (Chinese Version) [14.2 MB]
Ui12/16 User Guide V2.8 (French Version) [6.76 MB]
Ui12/16 User Guide V2.8 (German Version) [6.82 MB]
Ui12/16 User Guide V2.8 (Portuguese Version) [6.76 MB]
Ui12/16 User Guide V2.8 (Russian Version) [24.2 MB]
Ui12/16 User Guide V2.8 (Spanish Version) [6.78 MB]

Brochures

Soundcraft Ui Series Brochure [18.1 MB]
